The NEW Extreme Networks X870-32c Switch offers a high switching capacity of 6.4 Tbps, with a forwarding rate of 3.17 Bpps and a MAC address table size of 136,000 entries. With its 32x100GB QSFP28 ports, this switch is designed to efficiently handle large data traffic volumes in data centers.
The X870 Series provides reliable performance for demanding networking environments that require high bandwidth and low latency connectivity. Its compact design makes it suitable for rack deployments where space may be limited while providing robust capabilities for network scalability and management.

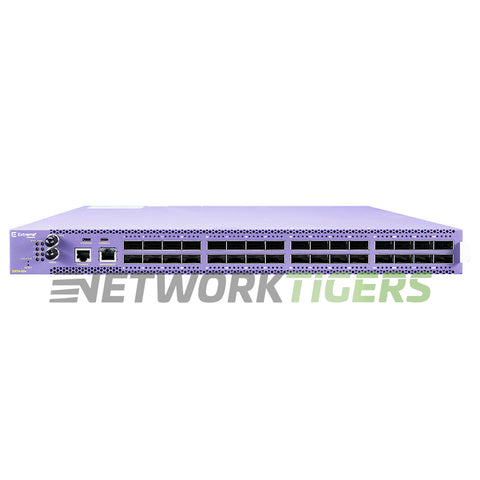

NEW Extreme 17800 X870 Series X870-32c 32x 100GB QSFP28 Swich
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Uplink Ports : 1x Out of Band Management, 1x USB Type A, 1x Micro USB Type B
- Management Ports : 1x Serial Console RJ45
- Switch Version : Full featured ExtremeXOS operating system with advanced features supporting switching, routing, SDN, and VXLAN
- System Memory : 8GB DDR3 ECC memory
- AirFlow Direction : Depends on PSU and Fan Module Options
- Fan Modules : 6x Fan Module Slots - Fans Not Included - Ordered Separately - Options are - 17115 (Front to Back Airflow) or 17116 (Back to Front Airflow)
- Power Supplies : 2x PSU Slots - Power Supplies not included - Ordered Separately
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 3.17 Bpps
- MAC Address Table Size : 136,000
- Power Supply Options : 10960 (770W - Front to Back Airflow), 10961 (770W - Back to Front Airflow) or 10962 (1100W DC - Front to Back Airflow), 10963 (1100W DC - Back to Front Airflow)
- SSD : 32GB SSD memory
- CPU : 2.4GHz Quad core CPU
- Model Number : 17800
- Part Number : 17800
- Condition : New
- One (1) New Extreme Networks 17800 ExtremeSwitching X870 X870-32c 32x 100 Gigabit QSFP28 Switch as described above
