The Cisco C9200-24P-A Catalyst 9200 Series is a high-performance switch that offers excellent functionality for small to medium-sized businesses. With 24 ports of PoE+ capability, it enables easy connectivity for devices such as IP phones and wireless access points.
This model also features one module slot, allowing additional expansion options per your requirements. The power over the Ethernet budget is impressive - up to 370W with one PSU or double that (740W) with two PSUs installed. Its MAC address table size supports up to 32,000 entries, making it suitable for networks requiring significant scalability in device connections.
This switch has a switching capacity of 128 Gbps, which can be further increased to an impressive 288 Gbps when stacked together. It boasts a forwarding rate of up to 190.4 Mpps (or 214 Mpps when stacked), ensuring smooth data transmission within the network.

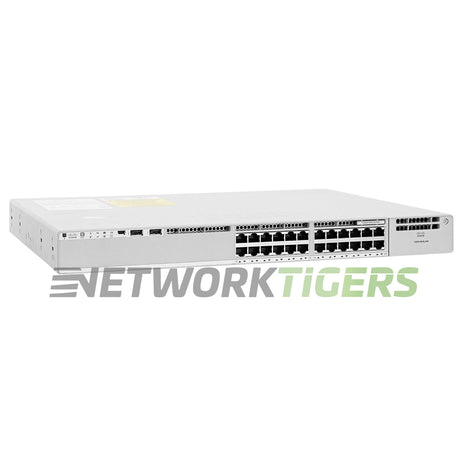

Cisco C9200-24P-A Catalyst 9200 Series 24x 1GB PoE+ RJ-45 1x Module Slot Switch
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ-45
- SMARTnet : If you are planning to put this under SMARTnet, please ask before purchasing. We cannot guarantee that the unit will be SMARTnet eligible unless checked prior to purchase.
- Management Ports : 1x RJ-45 Console, 1x Gigabit Management, 2x USB, 1x Mini USB
- Stacking Ports : StackWise-160 possible through the use of C9200-STACK-KIT - Ordered Separately - Stacking Bandwidth = 160 Gbps | This switch cannot be stacked with fixed C9200 models or other Catalyst switches.
- Stacking Cable Options : STACK-T4-50CM (Default with C9200-STACK-KIT), STACK-T4-1M, STACK-T4-3M - Not Included
- Module Slots : 1x Expansion Module Slot - Module not Included
- Module Options : C9200-NM-4G (4x 1GB SFP) , C9200-NM-4X (4x 1G/10G SFP), C9200-NM-BLANK - None Included - Ordered Separately
- Switch Version : Network Advantage
- Fan Module Options : 2x C9200-FAN Fan Modules Included
- Power Supplies Included : 1x PWR-C5-600WAC Included - 2x Slots - 2nd Power Supply ordered separately
- Power Supply Options : PWR-C5-125WAC, PWR-C5-600WAC, PWR-C5-1KWAC, PWR-C5-BLANK
- PoE Budget : 370W (with 1x PSU), 740W (with 2x PSU's)
- Switching Capacity : 128 Gbps (288 Gbps with Stacking)
- Forwarding Rate : 190.4 Mpps (214 Mpps with Stacking)
- MAC Address Table Size : 32,000
- SD Access Support : Yes (4 Virtual Networks)
- Model Number : C9200-24P-A
- Part Number : C9200-24P-A, C9200-24P-A=, C9200-24P-A-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9200-24P-A Catalyst 9200 Series 24x 1GB PoE+ RJ-45 1x Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
