The Cisco C9300-48P-E is a high-performance switch designed for enterprise networks. It provides ample connectivity options with 48 PoE+ ports and an expansion module slot. The switch offers a robust power budget of up to 437W, allowing you to power multiple devices simultaneously.
Featuring a switching capacity of 256 Gbps (736 Gbps with stacking) and a forwarding rate of 190.48 Mpps (547.62 Mpps with stacking), the C9300-48P-E ensures fast data transfer and efficient network performance.
With its large MAC address table size of 32,000 entries, this switch can handle extensive device connections without reducing speed or efficiency.
The C9300-48P-E supports optional secondary power supplies that provide increased wattage capabilities up to 787W with the default PSU configuration. The PoE budget is 1440W with an 1100W and a 715W power supply.

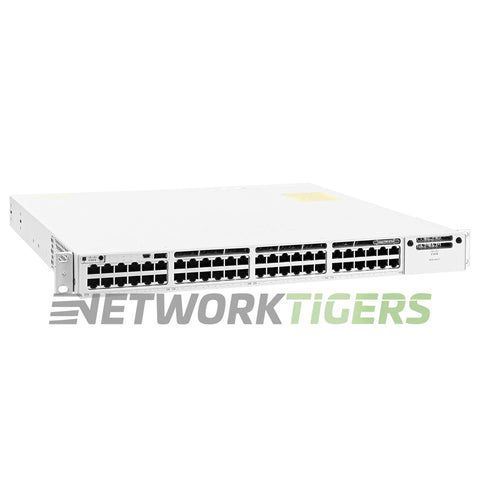

Cisco C9300-48P-E: Catalyst 9300 48x 1Gb RJ45 PoE+ ports.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
- Management Ports : 1x RJ-45 Console, 1x RJ-45 Management, 1x USB Type B, 1x USB Type A
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Cables sold separately
- Module Slots : 1x Expansion Module Slot - Module not Included - Ordered Separately
- Module Options : C9300-NM-4G (4x 1GB SFP) , C9300-NM-8X (8x 10GB SFP+), C9300-NM-2Q (2x 40GB QSFP), C9300-NM-2Y (2x 25GB SFP28), C9300-NM-4M (4x MultiGB RJ-45)
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans Included
- Power Supplies Included : 1x PWR-C1-715WAC (715W AC) included - 2x Slots
- Power Supply Options : PWR-C1-715WAC or PWR-C1-1100WAC or PWR-C1-350WAC
- PoE Budget : 437W with default PSU - 787W (with 350W Secondary PS), 1152W (with 715W Secondary PS), 1440W (with 1100W Secondary PS)
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.48 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- Model Number : C9300-48P-E
- Part Number : C9300-48P-E, C9300-48P-E=, C9300-48P-E-WS
- Condition : New
- One (1) NEW Cisco C9300-48P-E 48x 1GB PoE+ RJ-45 1x Expansion Module Slot Switch as described above
