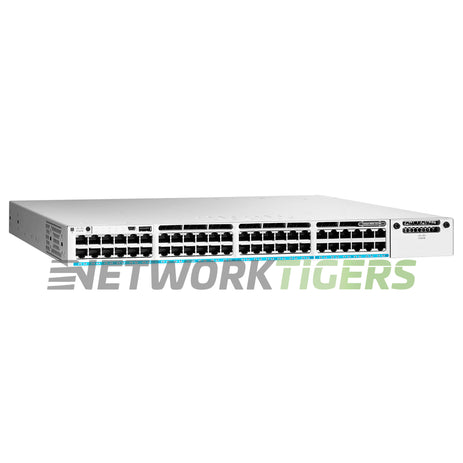

The Cisco C9300L-48UXG-4X-E is a powerful switch for high-performance networking. With its 48x 1GB UPoE RJ-45 ports and an additional 12 multi-Gigabit ports, this switch provides ample connectivity options to support multiple devices simultaneously.
Featuring four built-in 10GB SFP+ transceiver slots, the C9300L delivers lightning-fast data transfer speeds over longer distances. The switching capacity of up to 176 Gbps ensures smooth network traffic flow without bottlenecks.
With stacking capabilities, the switching capacity can be boosted to 496 Gbps while delivering impressive forwarding rates of 130.95 Mpps (369.05 Mpps with stacking). This makes it well-suited for bandwidth-intensive applications in large-scale enterprise environments.
The MAC address table size of 32,000 allows efficient handling and routing of data packets across diverse networks.
Cisco C9300L-48UXG-4X-E: Catalyst 9300 48x (36x 1Gb, 12xmGig) UPOE Ports, 4x 10G SFP+ uplink ports.
- Network Ports : 36x Gigabit Ethernet RJ-45 UPOE, 12x MultiGigabit Ethernet RJ-45
- Uplink Ports : 4x 10 Gigabit Ethernet SFP+
- Management Ports : 2x USB, 1x Mini USB
- Stack Technology : StackWise-320 (Optional Stacking Hardware - C9300L-STACK-KIT - ordered separately)
- Supported Stack Members : Other C9300L SKUs with same license level (Number of Members - 8)
- Stacking Cable Options : STACK-T3-50CM, STACK-T3-1M, STACK-T3-3M - None Included
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Fan Modules Included
- Power Supplies Included : 1x PWR-C1-1100WAC-P Power Supplies Included - 2x Slots - 2nd Power Supply ordered separately.
- Product Family : Catalyst 9300L Series
- Switching Capacity : 176 Gbps (Switching Capacity with Stacking - 496 Gbps)
- Forwarding Rate : 130.95 Mpps (Forwarding Rate with Stacking - 369.05 Mpps)
- MAC Address Table Size : 32,000
- Model Number : C9300L-48UXG-4X-E
- Part Number : C9300L-48UXG-4X-E, C9300L-48UXG-4X-E=, C9300L-48UXG-4X-E-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco C9300L-48UXG-4X-E 48x 1GB UPoE RJ-45 (12x MultiGB) 4x 10GB SFP+ Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
