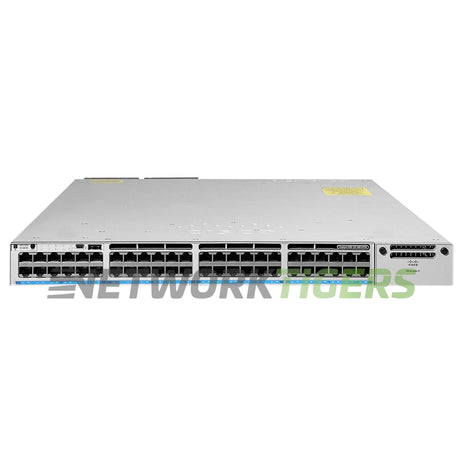

Cisco C9300X-48HXN-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Mod Slot Switch

Cisco C9300X-48HXN-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Mod Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9183
UPC: 889728362351

Overview

The Cisco C9300X-48HXN-A is a powerful switch designed for network infrastructure. It features 48 MultiGB UPoE+ RJ45 ports, allowing for high-speed connectivity and Power over Ethernet functionality.

With various power supply options (690W, 1040W with a secondary PS, 1405W with a 715W secondary PSU), this switch provides flexibility regarding the PoE budget. The switching capacity is impressive at 2,000 Gbps (3,000 Gbps when stacked), ensuring fast data transfers across your network.

Besides its performance capabilities, the Cisco C9300X-48HXN-A has a large MAC address table size of up to 32,000 entries. This allows it to handle extensive networks without compromising efficiency or speed.

Cisco C9300X-48HXN-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Mod Slot Switch


Specifications

  • Network Ports : 40x 5GB MultiGigabit (5GB/2.5GB/1GB/100M), 8x 10GB MultiGigabit (10GB/5GB/2.5GB/1GB/100M)
  • Management Ports : 1x USB 2.0, 1x RJ45 Management
  • Stacking Ports : 2x Stackwise-1T Ports (1Tbps Stacking Bandwidth), 2x StackPower+ Ports - Cables sold separately - StackWise Options are STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M - StackPower Options are CAB-SPWR-30CM, CAB-SPWR-150CM
  • Module Slots and Options : 1x Expansion Module Slot - Module Not Included - Module Options are C9300X-NM-8M, C9300X-NM-8Y, C9300X-NM-2C, C9300X-NM-4C, C9300-NM-4G, C9300-NM-4M, C9300-NM-8X, C9300-NM-2Q, C9300-NM-2Y
  • Firmware Version : Network Advantage
  • Fan Modules AirFlow Direction : 3x FAN-T2 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-1100WAC-P PSU Included (Default) - 2nd PSU Slot
  • PoE Budget : 690W (1040W w/ 350W Secondary PS, 1405W w/ 715W Secondary PSU, 1790W w/ 1790W Secondary PSU, 2590W w/ 1900W Secondary PSU)
  • Switching Capacity : 2,000 Gbps (3,000 Gbps w/ Stacking)
  • Forwarding Rate : 1488 Mpps (2232 Mpps w/ Stacking)
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (1-RU)
  • StackPower : Up to 4 switches can be configured in a StackPower stack with the special connector at the back of the switch. C9300X models support StackPower+.
  • Additional Stacking Information : Up to 8 Members in a stack (max of 448 ports). Mixed stacking between Catalyst 9300X and Catalyst 9300 models are supported at StackWise-480 speeds
  • Model Number : C9300X-48HXN-A
  • Part Number : C9300X-48HXN-A
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished Cisco C9300X-48HXN-A Catalyst 9300X 48x MultiGB UPoE+ RJ45 1x Mod Slot Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • Three (3) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
