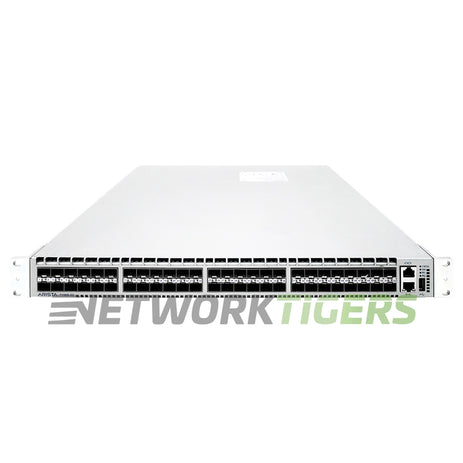

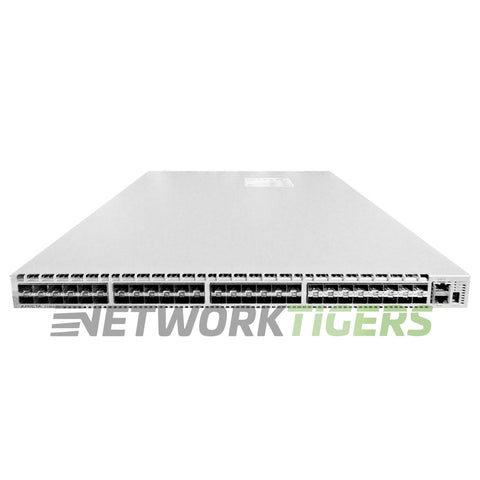

NEW Arista DCS-7150S-52-CL-R 52x 10G SFP+ R-F Air (High Precision Clock) Switch
New

NEW Arista DCS-7150S-52-CL-R 52x 10G SFP+ R-F Air (High Precision Clock) Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-2455

Overview

The Arista DCS-7150S-52-CL-R is a 52x 10G SFP+ switch designed for high-speed data operations. It delivers a switching capacity of 1.04Tbps, with a forwarding rate reaching up to 780 million packets per second (Mpps).

Its compact design ensures efficient handling of workloads while maintaining low latency at just 380 nanoseconds. Supporting MAC address table sizes up to 64,000 entries makes it suitable for large-scale applications requiring precise traffic management and routing policies in Ethernet-based networks. Reverse airflow enhances cooling capabilities crucial during extended operation periods or dense deployments.

Arista DCS-7150S-52-CL-R: Arista 7150 switch with 52 1/10 Gigabit Ethernet SFP+ uplink ports. The switch has a high precision clock, rear-to-front airflow and 2 AC power supply units which are hot swappable.


Specifications

  • Network Ports : 52x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x Gigabit Management, 1x RS-232 Serial RJ45, 1x USB
  • CPU : Dual-Core x86
  • VLAN ID's : 4096
  • Packet Buffer : 9.5MB
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Module Options : 4x FAN-7000-R - (N+1 redundant) Fan Modules Included
  • Power Supplies Included : 2x PWR-460AC-R (1+1 redundant) Power Supplies Included
  • Switching Capacity : 1.04 Tbps
  • Forwarding Rate : 780 Mpps
  • MAC Address Table Size : 64,000
  • Latency : 380ns
  • DRAM and Flash : 4GB DRAM, 2GB Flash
  • Model Number : DCS-7150S-52-CL-R
  • Part Number : DCS-7150S-52-CL-R
  • Condition : New


Included

  • One (1) New Arista DCS-7150S-52-CL-R 7150S Series 52x 10 Gigabit Ethernet SFP+ Rear to Front Airflow (High Precision Clock) Switch as described above
