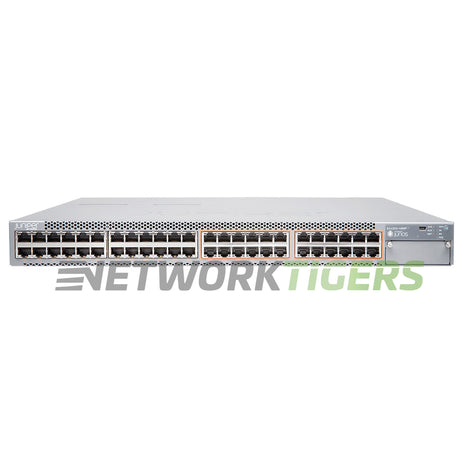

The Juniper EX4300-48MP is a high-performance switch that offers versatile connectivity options and advanced features. This model has 24x 1Gbps RJ45 ports and 24x MGb RJ45 MGb ports, allowing for reliable wired connections. It also includes four 40-gigabit QSFP+ ports for high-speed network aggregation.
With its PoE budget of 1100W, the EX4300-48MP can provide power to compatible devices such as IP cameras or wireless access points without additional power sources.
This switch has a switching capacity of up to 960 Gbps and a forwarding rate of up to 714 million packets per second (Mpps). Its large MAC address table size of 64,000 entries supports extensive networks with numerous connected devices.
Juniper EX4300-48MP: 24-port 10/100/1000BASE-T, 24-port 100/1000/2500/5000/10000BASE-T, 95W PoE + 1400 W AC PS (provides up to 1100 W PoE+ power) (QSFP+ DAC for Virtual Chassis ordered separately).
- Network Ports : 24x 1 Gigabit Ethernet RJ45 PoE+, 24x MultiGigabit Ethernet RJ45 95 W PoE++ (100/1000/2500/5000/10000BASE-T)
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ-45 Management, 1x RJ-45 Console, 1x USB
- Module Slots : 1x Slot - None Included - Sold Separately
- Module Options : EX-UM-2QSFP-MR, EX-UM-4SFPP-MR - Not included
- Switch Version : Junos OS
- AirFlow Direction : AFO - Front-to-back airflow
- Fan Module Options : 2x EX4300-48MP-FAN
- Power Supplies Included : 1x JPSU-1400-AC-AFO - 1400W AC Included - 2x Slots - 2nd Power Supply ordered separately.
- PoE Budget : 1100W PoE++
- Switching Capacity : 960 Gbps
- Forwarding Rate : 714 Mpps
- MAC Address Table Size : 64,000
- Model Number : EX4300-48MP
- Part Number : EX4300-48MP
- Condition : Seller refurbished
- One (1) Seller Refurbished Juniper EX4300-48MP 24x 1GB RJ-45 MultiGB RJ-45 4x 40GB QSFP+ F-B Air Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
