NEW Juniper EX4500-40F-VC1-DC EX4500 40-Port 10GbE SFP+ DC Front-to-Back Switch - NetworkTigers

NEW Juniper EX4500-40F-VC1-DC 40x 10GB SFP+ 2x Mod Slot F-B Air (DC) Switch

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5704
UPC: 832938053427


EX4500-40F-VC1-DC Juniper Switch - new: NetworkTigers offers this new Switch. This Juniper EX4500-40F-VC1-DC Switch new in open box. We can overnight this Juniper EX4500-40F-VC1-DC Switch to your data center.

The Juniper EX4500-40F-VC1-DC is a member of the Juniper EX4500 Series of network switches and related products. The Juniper EX4500 Series is a collection of scalable, high performance switching platforms that are designed for top-of-rack, data center, campus, and service provider aggregation deployments.

Juniper EX4500-40F-VC1-DC: 40-port GbE/10GbE SFP/SFP+ front-to-back airflow, 128 Gbps Virtual Chassis Interconnect module, 1200W DC power supply, hardware support for Data Center Bridging, and support for eight PFC (802.1Qbb) queues.


  • Network Ports : 40x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ-45 Serial Console, 1x Gigabit Management RJ-45, 1x USB port
  • Stacking Ports : 1x EX4500-VC1-128G Virtual Chassis Module which houses 2x Virtual Chassis Ports (VCP) with 128 Gbps. VCP Cable sold separately.
  • Module Slots and Options : 2x Module Slot - None included - Sold separately - Options are - EX4500-UM-4XSFP
  • Power Supplies Included : 1x 1EX4500-PWR1-DC PSU Included
  • Switching Capacity : 480 Gbps
  • Forwarding Rate : 714 Mpps
  • MAC Address Table Size : 32,000
  • Rack Mounts : Included (2-RU)
  • Interfaces : 40 x SFP+ 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - management 1 x console - RJ-45 - management 1 x USB - Type A
  • Expansion Slots : 2 (total) / 2 (free) x expansion slot
  • Power Device : Internal power supply - hot-plug
  • Included Accessories : 4 rubber feet
  • Model Number : EX4500-40F-VC1-DC
  • Part Number : EX4500-40F-VC1-DC
  • Condition : New

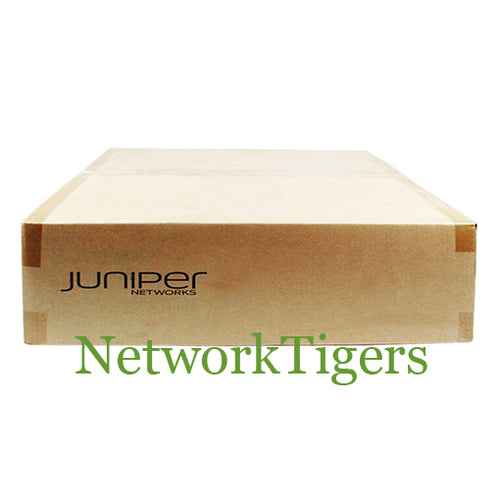

  • One (1) NEW Juniper EX4500-40F-VC1-DC 40x 10GB SFP+ 2x Mod Slot F-B Air (DC) Switch as described above

Not Included

  • SFP Modules Not Included
  • Uplink Modules Not Included
