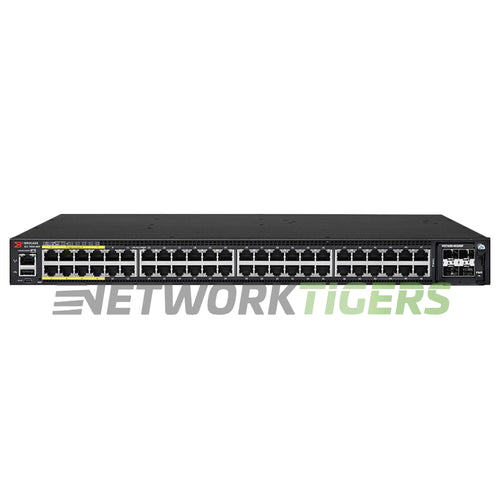

Ruckus Brocade ICX7450-48P-STK-E 48x 1GB PoE+ RJ-45 2x 40GB QSFP+ F-B Air Switch

Ruckus Brocade ICX7450-48P-STK-E 48x 1GB PoE+ RJ-45 2x 40GB QSFP+ F-B Air Switch

Ask for quote
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-6184
UPC: 080479849867


The Ruckus Brocade ICX7450-48P-STK-E is a versatile network switch that offers high-performance connectivity in enterprise environments. With 48 ports of PoE+ RJ-45 and two 40GB QSFP+ uplink ports, this switch provides ample power and speed for demanding applications.

Featuring a robust PoE budget of 1500W, the ICX7450-48P-STK-E can effectively support multiple devices such as IP phones, wireless access points, and security cameras. It boasts a switching capacity of 336 Gbps and a forwarding rate of 250 Mpps to ensure smooth data transmission even during peak hours.

With its generous MAC address table size of 32,768 entries, this switch allows for efficient handling of large-scale networks without compromising performance or scalability.

Ruckus ICX7450-48P-STK-E: 48-port 1 GbE switch PoE+ bundle includes 2 40 GbE QSFP+ uplinks/stacking, 1 1,000 W AC power supply and one fan, front-to-back airflow (stack member with no uplink module).


  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45
  • Uplink Ports : 2x 40 Gigabit Ethernet QSFP+ (Through the use of modules - see "Module Slots and Options")
  • Management Ports : 1x Mini-USB RS232 Serial (Mini-B plug), 1x RJ-45 Gigabit Ethernet Management, 1x USB
  • Stacking Ports : Up to 12 Ruckus ICX 7450 switches can be stacked together using two full-duplex QSFP+ 40 Gbps ports that provide a fully redundant backplane with 960 Gbps of stacking bandwidth.
  • Module Slots : 3x Expansion Module Slots (1x Front of Switch, 2x Rear of Switch)
  • Module Options : 2x ICX7400-1X40GQ Included (Rear of Switch) - Front Slot empty. Other Module Options are ICX7400-4X1GF, ICX7400-4X10GF, ICX7400-4X10GC, ICX7400-SERVICE-MOD
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 1x ICX-FAN10-E Fan Module Included - Front-to-Back Airflow
  • Power Supplies Included : 1x RPS16-E 1000W AC Power Supply Included
  • Power Supply Options : RPS16-I is reversed airflow option
  • PoE Budget : 1500W
  • Switching Capacity : 336 Gbps
  • Forwarding Rate : 250 Mpps
  • MAC Address Table Size : 32,768
  • Model Number : ICX7450-48P-STK-E
  • Part Number : ICX7450-48P-STK-E
  • Condition : Seller refurbished


  • One (1) Seller Refurbished Ruckus ICX7450-48P-STK-E Brocade ICX 7450 Series 48x Gigabit Ethernet PoE+ RJ-45 2x 40G QSFP+ Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
