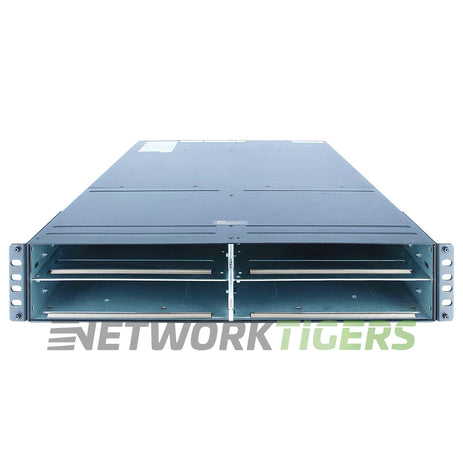

The HPE JH398A FlexFabric has 4x Expansion Module Slots. This switch provides immense flexibility for expanding your network as needed. The Switching Capacity of up to 2560 Gbps (when fully loaded) ensures fast and reliable data transfer across the network.
With a Forwarding Rate of up to 1904 Mpps (when the chassis is fully loaded with switching modules), this switch can handle heavy traffic loads efficiently. The MAC Address Table Size supports up to an impressive 288,000 entries, allowing for seamless communication between devices on the network.
With latency levels below one microsecond (1 µs) enables quick response times without any noticeable delays in packet transmission.
HPE FlexFabric 5940 4-slot Switch (JH398A): 4 module slots, Supports a maximum of 32 40GbE ports or 96 1/10GBASE-T ports or 96 SFP+ ports or 96 Converged ports, or a combination, 4x power supply slots, 2x minimum power supplies required (ordered separately), 2x fan tray slots (fan trays ordered separately to match air flow of power supplies)
- Network Ports : See Module Slots and Options
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Out of Band Management, 1x USB 2.0, 1x Mini USB 2.0
- Stacking Ports : 4x Expansion Module Slots - None Included - Ordered Separately - Supports a maximum of 32 40GbE ports or 96 1/10GBASE-T ports or 96 SFP+ ports or 96 Converged ports, or a combination
- Expansion Module Options : JH180A - 24x SFP+ 2x QSFP+, JH181A - 24x SFP+ 2x QSFP+, JH409A - 2x QSFP+ 2x QSFP28, JH182A - 24x 10GB RJ-45 2x QSFP+, JH183A - 8x QSFP+, JH184A - 24 Converged Port 2x QSFP+, JH957A - 8x QSFP28
- Fan Modules AirFlow Direction : 2x Fan Tray Slots - ordered separately - Options are JG552A (Front-to-Back), JG553A (Back-to-Front)
- Power Supplies Included : 4x Power Supply Slots - 2x Required - None Included - Ordered Separately - Options are JH336A (650W 48V NEBS DC), JC680A (HPE 58x0AF 650W AC)
- Switching Capacity : 2560 Gbps (maximum when fully loaded with modules)
- Forwarding Rate : 1904 Mpps (maximum when fully loaded with modules)
- MAC Address Table Size : 288,000
- Latency : < 1 µs (64-byte packets)
- Rack Mounts : Included (2-RU)
- Memory and Processor : Flash = 1GB, Packet buffer size = 16 MB, SDRAM = 4GB
- Model Number : JH398A
- Part Number : JH398A
- Condition : Seller refurbished
- One (1) Seller refurbished HPE JH398A FlexFabric 5940 Series 4x Expansion Module Slots Switch as described above
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Cord Not Included
- Power Supplies Not Included
- Transceiver Modules Not Included
- Network Modules Not Included
- Fan Modules Not Included
