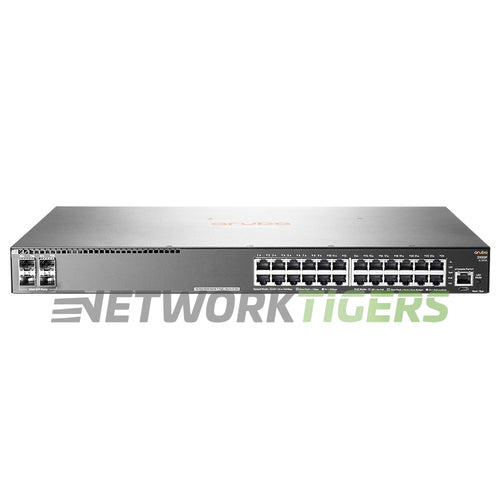

The HPE Aruba JL261A 2930F Series switch is a powerful networking solution for small to medium-sized businesses. With its 24x 1GB PoE RJ-45 ports and additional 4x SFP ports, this switch offers flexibility in connecting various devices.
The PoE budget of up to 370W provides ample power for your Power-over-Ethernet devices, such as IP cameras or wireless access points. The switching capacity of up to 56 Gbps ensures smooth data transmission between connected devices, while the forwarding rate of approximately 41.7 Mpps guarantees fast packet delivery.
With a MAC Address Table Size capable of storing up to 32,768 addresses, you can confidently connect numerous devices without worrying about address limitations. The low latency (less than 3.8 μs for 64-byte packets) ensures quick response times even with heavy network traffic.
Aruba JL261A: 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP.
- Network Ports : 24x 1 Gigabit Ethernet PoE+ RJ45
- Uplink Ports : 4x 1 Gigabit Ethernet SFP
- Management Ports : 1x Dual-Personality (RJ-45 or USB micro-B) Serial Console
- Product Family : Aruba 2930F Series
- Power Supplies Included : 1x Internal AC Power Supply
- Routing table size : 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
- PoE Budget : 370W
- Switching Capacity : 56 Gbps
- Forwarding Rate : 41.7 Mpps
- MAC Address Table Size : 32,768
- Latency : < 3.8 μs (64-byte packets) (1000Mb)
- Memory and Processor : Dual Core ARM Coretex A9 @ 1016 MHz, 1GB DDR3 SDRAM, Packet Buffer Size = 12.38MB, Ingress/7.785 Egress = 4.5MB, eMMC = 4GB
- Model Number : JL261A
- Part Number : JL261A, 2930F 24G PoE+ 4SFP
- Condition : Seller refurbished
- One (1) Seller Refurbished HPE Aruba JL261A 2930F Series 24x 1GB PoE+ RJ-45 4x 1GB SFP Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
