The HPE Aruba JL658A CX 6300 Series Switch is a high-performance networking device designed for smooth and efficient data transfer in modern networks. With its impressive switching capacity of 880 Gbps, this switch can easily handle heavy network traffic.
Featuring 24x 10GB SFP+ ports and 4x25GB SPF56 ports, the JL658A offers flexibility in connectivity options to accommodate various network setups. Its forwarding rate of up to 654 Mpps ensures minimal latency while delivering packets across the network.
Equipped with a MAC Address Table Size that supports up to 32,768 entries, this switch allows seamless communication between devices on the same local area network (LAN).

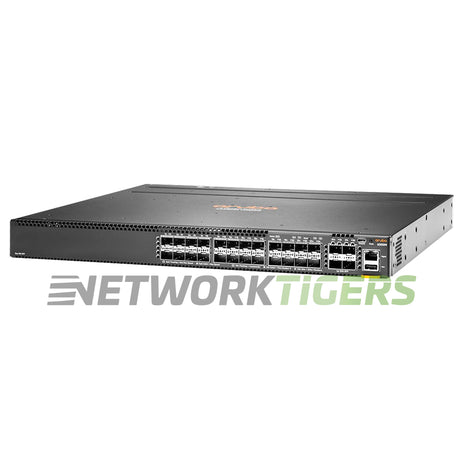

HPE Aruba JL658A: 6300M 24-port SFP+ and 4-port SFP56 Switch.
- Network Ports : 24x 10 Gigabit Ethernet SFP+
- Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SPF56
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- Fan Module Options : 2x Fan Tray Slots - 2x Fan Tray Included
- Power Supplies Included : 2x PSU Slots - 1x Min Required - Ordered Separately - Options are JL085A
- Power Supply Options : JL085A is only option
- Switching Capacity : 880 Gbps
- Forwarding Rate : 654 Mpps
- MAC Address Table Size : 32,768
- Latency : 1Gbps = 1.99ųSec, 10Gbps = 1.49ųSec, 25Gbps = 2.85ųSec, 50Gbps1 = 2.82ųSec
- DRAM and Flash : 8 GB DDR4 32 GB eMMC
- Model Number : JL658A
- Part Number : JL658A, JL658A#ABA
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JL658A CX 6300 Series 24x 10GB SFP+ 4x 25GB SPF56 Switch as described above
- Two (2) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Supplies Not Included
- Power Cord Not Included
