The HPE Aruba JL663A CX 6300 Series Switch is a high-performance networking solution designed to meet the needs of today's data-intensive business environments. With 48x 1GB RJ45 ports and 4x 25GB SFP56 ports, this switch provides ample connectivity options for various devices.
Featuring a switching capacity of up to 496 Gbps and a forwarding rate of up to 369 Mpps, this switch ensures fast and reliable data transfer within your network. It also offers a large MAC address table with 32,768 entries.
With its robust performance capabilities, the HPE Aruba JL663A enables efficient traffic management while minimizing latency issues. This makes it ideal for demanding applications such as video streaming or large file transfers.
HPE Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A): 48x ports 10/100/1000 BaseT ports 1G/10G/25G/50 SFP ports
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 2x Fan Tray Slots - 1x JL761A Fan Tray Included
- Power Supplies Included : 2x PSU Slots - 1x Min Required - Ordered Separately
- Power Supply Options : JL086A (HPE Aruba Networking X372 54VDC 680W), JL087A (HPE Aruba Networking X372 54VDC 1050W), JL670A (HPE Aruba Networking X372 54VDC 1600W)
- Switching Capacity : 496 Gbps
- Forwarding Rate : 369 Mpps
- MAC Address Table Size : 32,768
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL663A
- Part Number : JL663A, JL663A#ABA
- Condition : New

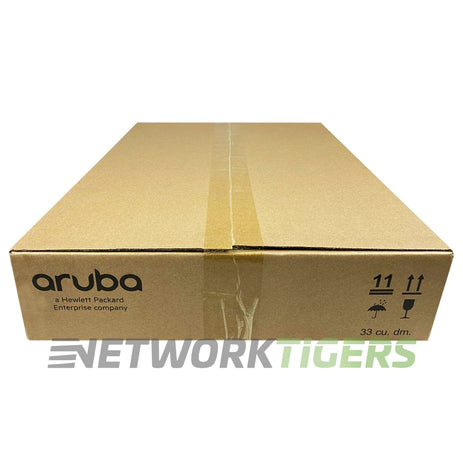

- One (1) New HPE JL663A Aruba CX 6300 Series 48x 1 Gigabit RJ45 4x 25 SFP56 Switch as described above
