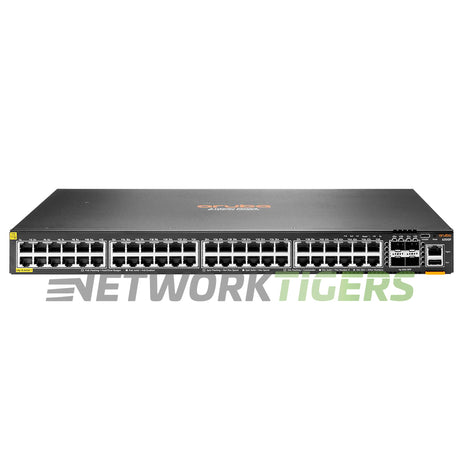

HPE Aruba JL665A CX 6300 Series 48x 1GB PoE+ RJ45 4x 50GB SFP56 Switch

HPE Aruba JL665A CX 6300 Series 48x 1GB PoE+ RJ45 4x 50GB SFP56 Switch

$ 2,645.99
$ 1,681.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-8070
UPC: 190017340296

Overview

The HPE Aruba JL665A CX 6300 Series Switch is a high-performance networking solution designed for enterprises. With its impressive switching capacity of 496 Gbps and forwarding rate of 369 Mpps, it can handle heavy network traffic effectively.

Equipped with 48x1GB PoE+ RJ45 ports and 4x25GB SFP56 ports, this switch offers flexible connectivity options to meet various deployment needs. It also features a large MAC address table with 32,768 entries.

The JL665A comes with an ample amount -8GB DDR4 RAM ensures smooth operation while handling multiple tasks; meanwhile, the onboard eMMC flash provides sufficient storage space (32GB) for configuration files and firmware updates.

HPE Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A): 48x ports 10/100/1000BaseT PoE+ Ports supporting up to 30W per port 1G/10G/25/50 SFP ports, Supports PoE Standards IEEE 802.3af, 802.3at


Specifications

  • Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ-45 - IEEE 802.3bt Class 6 (60W)
  • Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
  • Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
  • Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB for a total of up to 200 Gbps of stacking throughput per switch
  • Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
  • Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
  • Fan Module Options : Fixed
  • Power Supplies Included : 1x Fixed PSU 100V-120V/200V-240V Internal 200W AC PSU
  • PoE Budget : 1440W (24 at 802.3bt 60W per port)
  • Switching Capacity : 496 Gbps
  • Forwarding Rate : 369 Mpps
  • MAC Address Table Size : 32,768
  • Latency : 1Gbps = 2.28ųSec, 10Gbps = 1.46ųSec, 25Gbps = 1.90ųSec, 50Gbps1 = 3.49ųSec
  • DRAM and Flash : 8GB DDR4, 32GB eMMC
  • Model Number : JL665A
  • Part Number : JL665A, JL665A#ABA
  • Condition : Seller refurbished


Included

  • One (1) Seller refurbished HPE Aruba JL665A CX 6300 Series 48x 1GB PoE+ RJ-45 4x 25GB SFP56 Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
