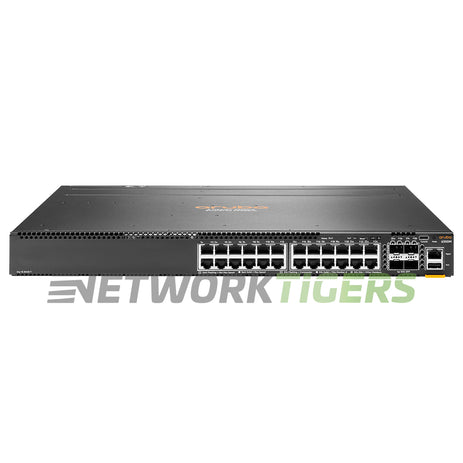

The HPE Aruba JL668A CX 6300 Series Switch is a powerful networking solution designed to meet the demands of modern businesses. With its stack size capability of up to 10 members, this switch provides flexibility and scalability for expanding networks.
Featuring high-speed connectivity options such as 1GB RJ-45 ports and 25GB SFP56 ports, it ensures reliable data transmission across your network. The switching capacity of 448 Gbps enables seamless traffic management even in heavy-load situations, while the forwarding rate of 334 Mpps enhances overall network performance.
With a MAC Address Table Size of up to 32,768 entries, this switch can easily support large-scale deployments. Its memory includes an impressive storage capacity comprising 8GB DDR4 RAM and ample flash space (32 GB eMMC) for optimum operation efficiency.
HPE Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A): 24x ports 10/100/1000BaseT Ports 1G/10G/25/50 SFP ports
- Network Ports : 24x 1 Gigabit Ethernet RJ-45
- Uplink Ports : 4x 50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, 25GB and 50GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- Fan Module Options : Fixed
- Power Supplies Included : 1x Internal 200W AC PSU
- Switching Capacity : 448 Gbps
- Forwarding Rate : 334 Mpps
- MAC Address Table Size : 32,768
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL668A
- Part Number : JL668A, JL668A#ABA
- Condition : Seller refurbished
- One (1) Seller refurbished HPE Aruba JL668A CX 6300 Series 24x 1GB RJ-45 4x 25GB SFP56 Switch as described above
- One (1) Power Cord Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
