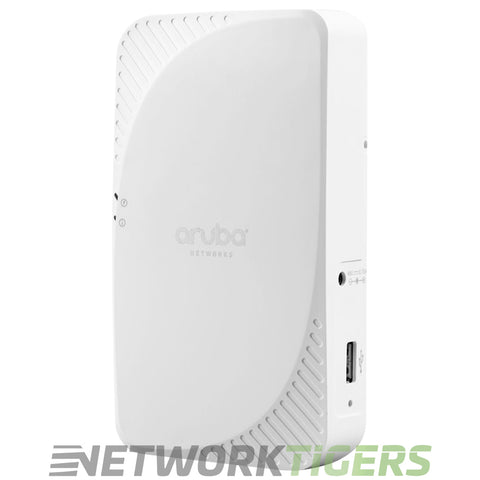

The HPE Aruba JW166A AP-205H is a dual-radio 802.11ac wireless access point with integrated semi-directional antennas for both the 2.4 GHz and 5 GHz frequency bands. With support for up to 256 client devices per radio and up to 16 BSSIDs per radio, this WAP offers reliable connectivity in crowded environments.
Featuring a maximum data rate of up to 867 Mbps (80-MHz channel) or 400 Mbps (40-MHz channel), the AP-205H provides fast and efficient wireless networking capabilities. Designed for use in demanding regulatory domains such as the US, this access point delivers consistent coverage and performance without having an effect on security or reliability.
Aruba JW166A: Aruba AP-205H Hospitality 802.11ac Dual 2x2:2 Radio Integrated Antenna AP.
- Interface Ports : 1x 1 Gigabit Ethernet RJ45, 3x 1 Gigabit Ethernet RJ45 LAN
- Radios : 1x 5GHz 802.11ac radio, 1x 2.4GHz 802.11n radio.
- Management Ports : 1x USB 2.0 host interface (Type A connector)
- Antenna Options : Four integrated semi-directional antennas for 2x2 MIMO with maximum antenna gain of 4.5 dBi in 2.4 GHz and 5.0 dBi in 5 GHz. Built-in antennas are optimized for vertical orientation of the AP
- Power Options : DC AP-AC-48V36C (48V/36 watts) | PoE - PD-9001GR-AC (802.3at) - Power Sources and Injectors sold separately
- Frequency : 2.4 GHz, 5 GHz
- Supports : Support for up to 256 associated client devices per radio, and up to 16 BSSIDs per radio
- Designed for : For hospitality and branch deployments
- Maximum Data Rate : up to 867 Mbps (80-MHz channel) or 400 Mbps (40-MHz channel) wireless data rate
- Regulatory domain : US
- Mounts : 1x JW040A Included - Mount plate to attach AP to single gang wall-box (most international variations covered), security screw - not included
- Model Number : JW166A
- Part Number : JW166A, AP-205H
- Condition : New

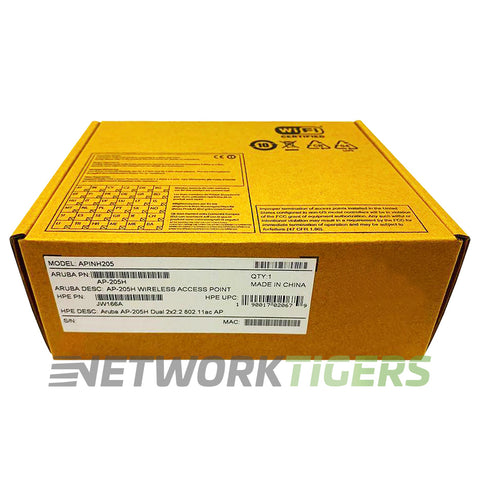

- One (1) NEW HPE Aruba JW166A AP-205H Dual Radio 802.11ac 2x2:2 MIMO WAP as described above
