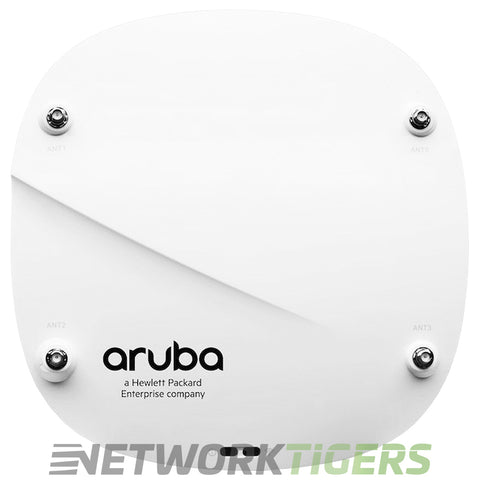

NEW HPE Aruba JW807A IAP-314 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP
New

NEW HPE Aruba JW807A IAP-314 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1214
UPC: 818242595730

Overview

The HPE Aruba JW807A IAP-314 (US) Instant WAP is an 802.11ac MU-MIMO wireless access point that operates on both the 2.4GHz and 5GHz frequencies, offering a total peak data rate of up to 2.1 Gbps with concurrent rates of up to 1733 Mbps on the 5 GHz band and up to 400 Mbps on the 2.4 GHz band for high-speed connectivity in US regulatory domain environments.

This device supports IEEE standards such as a/b/g/n/ac for compatibility across various networks, making it suitable for diverse networking needs without compromising performance or reliability.

Aruba JW807A: Aruba Instant IAP-314 (US) 802.11n/ac Dual 2x2:2/4x4:4 MU-MIMO Radio Antenna Connectors AP.


Specifications

  • Interface Ports : 1x 1 Gigabit Ethernet RJ45
  • Radios : 1x 5GHz 802.11ac 4x4 MIMO (1,733 Mbps max rate), 1x 2.4 GHz 802.11n 2x2 MIMO (300 Mbps max rate) radio
  • Management Ports : 1x USB 2.0 Type A
  • Antenna Ports : 4x RP-SMA - External detachable
  • Power Options : The AP supports direct DC power and Power over Ethernet (POE).  Power over Ethernet (PoE) - 48 Vdc (nominal) 802.3af/802.3at compliant source | Direct DC source - 12Vdc nominal, +/- 5% - Power sources sold separately
  • Frequency : 2.4 GHz, 5 GHz
  • Data Link Protocol : IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
  • Performance : Concurrent data rate (5 GHz) = 1733 Mbps | Concurrent data rate (2.4 GHz) = 400 Mbps | Peak data rate = 2.1 Gbps
  • Regulatory domain : US
  • Mounts : The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. (JW045A)
  • Model Number : JW807A
  • Part Number : JW807A
  • Condition : New


Included

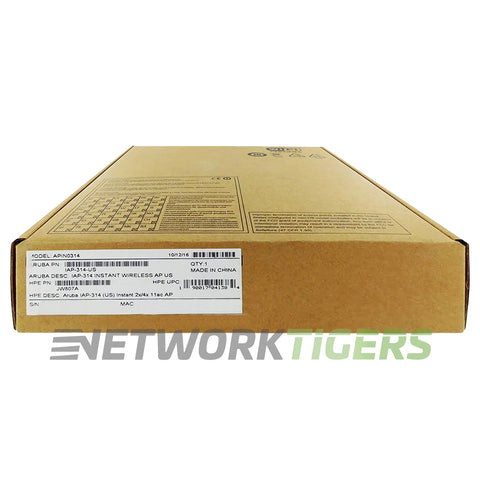

  • One (1) NEW HPE Aruba JW807A IAP-314 (US) Instant 802.11ac 2x2:2/4x4:4 MU-MIMO WAP as described above
