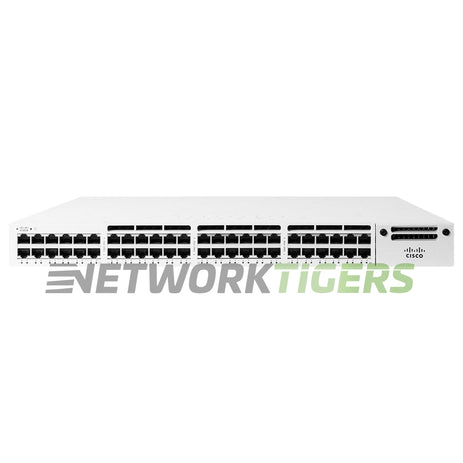

The Cisco Meraki MS390-48U-HW is a high-performance switch for efficient network management. With 48x 1GB UPoE RJ-45 ports and an expansion module slot, this unclaimed switch offers seamless connectivity options. It has a switching capacity of 256 Gbps and a forwarding rate of 190.48 Mpps.
This switch also boasts a large MAC address table size of up to 32,000 entries, enabling it to handle diverse networking environments effortlessly. With advanced features like power over Ethernet (UPoE) technology, administrators can conveniently deliver data and electricity through these interfaces.
With its high scalability capabilities via the expansion module slot, the Cisco Meraki MS390-48U-HW proves ideal for enterprise-grade networks that require reliable performance even under heavy workloads.
Cisco Meraki MS390-48U-HW: 48 Gigabit Ethernet RJ-45 UPOE ports. This switch comes with an 1100WAC PSU. This switch also features 2 120G hardware stacking ports. Unclaimed - License is not included. This is sold directly by Meraki.
- Network Ports : 48x 1 Gigabit Ethernet UPoE RJ-45
- Management Ports : 1x RJ-45 Management
- Stacking Ports : 2x 120G Hardware Stack Port
- Stacking Cable Options : MA-CBL-120G-50CM, MA-CBL-120G-1M, MA-CBL-120G-3M
- Module Slots : 1x Uplink Module Slot - Module is not included
- Module Options : MA-MOD-2X40G (2 x 40G Uplink Module), MA-MOD-4X10G (4 x 10G Uplink Module), MA-MOD-8X10G (8 x 10G Uplink Module)
- Fan Module Options : 3x MA-FAN-16K Hot Swappable Fans
- Power Supplies Included : 2x PSU Slots - 1x MA-PWR-1100W Included - 2nd PSU Ordered Separately.
- Power Supply Options : MA-PWR-350WAC, MA-PWR-715WAC, MA-PWR-1100WAC - None Included
- PoE Budget : 822W (w/ 1x PSU), 1800W (w/ 2x PSU)
- Switching Capacity : 256 Gbps
- Forwarding Rate : 190.48 Mpps
- MAC Address Table Size : 32,000
- Model Number : MS390-48U-HW
- Part Number : MS390-48U-HW, MS390-48U-HW=, MS390-48U-HW-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco Meraki MS390-48U-HW 48x 1GB UPoE RJ-45 1x Exp Mod Slot Unclaimed Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
- License is not included. This is sold directly by Meraki
