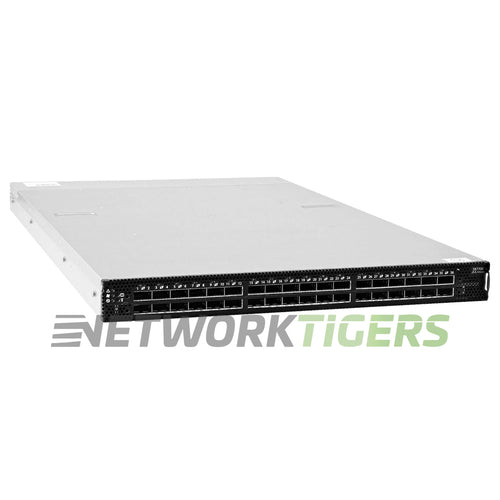

Mellanox MSB7700-ES2F SB7700 Infiniband 36x 100GB QSFP28 EDR B-F Air Switch

Mellanox MSB7700-ES2F SB7700 Infiniband 36x 100GB QSFP28 EDR B-F Air Switch

$ 2,314.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9307


MSB7700-ES2F Mellanox Switch: NetworkTigers offers this Switch. This Mellanox MSB7700-ES2F Switch we sell is tech tested. We can overnight this Mellanox MSB7700-ES2F Switch to your data center.

Mellanox MSB7700-ES2F: Switch-IB-based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7Tb/s. 2PS, Standard depth, P2C airflow, RoHS-6.


  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • InfiniBand : Extended Data Rate (EDR) InfiniBand - EDR uses efficient 64/66 encoding while increasing the per lane signaling rate to 25Gb/s
  • Management Ports : 2x 1 Gigabit RJ-45 Management, 1x RS232 Port, 1x USB
  • Product Family : SB7700 Infiniband
  • nVidia SKU : 920-9B010-00FE-0M2
  • Fan Modules AirFlow Direction : 4x MTEF-FANF-A Hot Swappable Fan Unit - Back-to-Front Airflow (P2C)
  • Power Supplies Included : 2x MTEF-PSF-AC-A AC PSU's - Back-to-Front Airflow (P2C)
  • CPU : Dual-core x86 CPU
  • Switching Capacity : 7 Tbps
  • Latency : 90ns
  • Rack Mounts : Included (1-RU)
  • Model Number : MSB7700-ES2F
  • Part Number : MSB7700-ES2F
  • Condition : Seller refurbished


  • One (1) Seller refurbished Mellanox MSB7700-ES2F SB7700 Infiniband 36x 100GB QSFP28 EDR B-F Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
