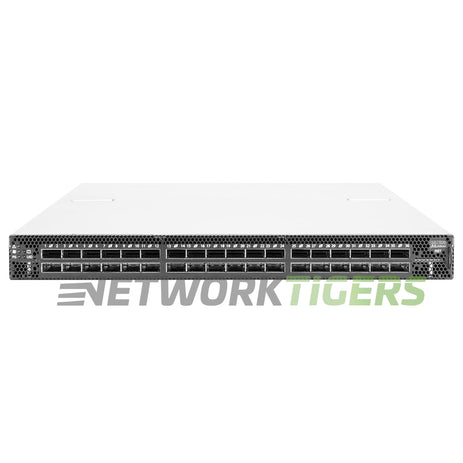

Nvidia Mellanox MSB7800-ES2F 36x 100GB QSFP28 B-F Airflow (P2C) Switch

Nvidia Mellanox MSB7800-ES2F 36x 100GB QSFP28 B-F Airflow (P2C) Switch

$ 945.99
$ 774.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6781

Overview

The Nvidia Mellanox MSB7800-ES2F switch is designed for high-performance data centers, offering a switching capacity of 7.2Tbps. With 36 ports supporting speeds up to 100GB each, this switch is ideal for handling large volumes of network traffic with ease.

The QSFP28 connectors ensure reliable connectivity and fast data transfer rates, while the B-F Airflow design helps maintain optimal cooling in rack-mounted installations.

This switch provides scalability and flexibility to meet evolving networking needs without compromising on performance or reliability. Whether used in cloud environments, AI applications, or big data analytics projects, the Nvidia Mellanox MSB7800-ES2F delivers consistent throughput and low latency across all connected devices. By investing in this cutting-edge solution from NVIDIA's extensive portfolio of networking products ensures that your infrastructure can keep up with growing demands efficiently and cost-effectively at scale.

Mellanox MSB7800-ES2F: Switch-IB 2 based 36-port QSFP28 EDR 1U Managed InfiniBand switch system with a non-blocking switching capacity of 7.2Tb/s. 2PS, Standard depth, P2C airflow.


Specifications

  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1x 1 Gigabit Ethernet Management RJ45, 1x RS-232 Port over DB9, 1x USB
  • Switch Version : MLNX-OS (Internally Managed) - InfiniBand
  • System Memory : 4GB RAM DDR3, 16GB SSD
  • AirFlow Direction : Back to Front Airflow (P2C/ Power to Connector)
  • Fan Modules : 1x MTEF-FANF-A Hot Swappable Fan Unit - Back to Front Airflow (P2C/ Power to Connector)
  • Power Supplies : 2x MTEF-PSF-AC-A Dual Redundant 460W Power Supply Units - Back to Front Airflow (P2C/ Power to Connector)
  • Switching Capacity : 7.2Tbps
  • Use Case : These stand-alone switches are an ideal choice for top-of-rack leaf connectivity or for building small to extremely large sized clusters.
  • Depth : Standard
  • Product Family : Mellanox SB7800 Series
  • Latency : InfiniBand
  • CPU : Embedded CPU x86 dual core
  • Model Number : MSB7800-ES2F
  • Part Number : MSB7800-ES2F
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSB7800-ES2F.

Included

  • One (1) Seller Refurbished Nvidia Mellanox MSB7800-ES2F 36x 100GB QSFP28 Back-to-Front Airflow (P2C) Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
