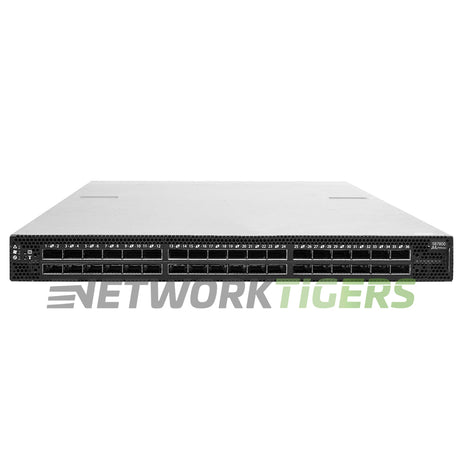

Nvidia Mellanox MSB7890-ES2F 36x 100GB QSFP28 B-F Airflow (P2C) EDR Switch

Nvidia Mellanox MSB7890-ES2F 36x 100GB QSFP28 B-F Airflow (P2C) EDR Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6791

Overview

The Nvidia Mellanox MSB7890-ES2F is a high-performance EDR switch designed for data centers and networking environments. With 36 ports supporting QSFP28 connectors, it provides fast connectivity at 100GB per second. The MSB7890-ES2F has a switching capacity of 7.2Tbps, enabling rapid data traffic.

Featuring low latency with only a 90 ns delay, the Mellanox MSB7890-ES2F ensures minimal delays in processing network requests. This makes it suitable for applications that require real-time communication or quick response times.

This switch supports Back-to-Front airflow orientation (front-to-back), making integrating into existing rack infrastructures easier without disrupting the existing cooling system design.

Mellanox MSB7890-ES2F: Switch-IB 2 based EDR 1U switch, 36 QSFP28 ports, 2 Power Supplies (AC), unmanaged, standard depth, P2C* airflow, Rail Kit.


Specifications

  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • Product Family : SB7890 Series
  • Management Ports : 1x Console RJ45, 1x Reset Button
  • Switch Version : EDR 100G InfiniBand
  • AirFlow Direction : Back-to-Front Airflow (P2C)
  • Fan Modules : 1x MTEF-FANF-A Hot Swappable Fan Unit Included - Back-to-Front Airflow (P2C) - MTEF-FANR-A is the option for F-B air
  • Power Supplies : 2x MTEF-PSF-AC-A AC PSU's Included - Back-to-Front Airflow (P2C)
  • Switching Capacity : 7.2Tbps
  • Latency : 90ns
  • Model Number : MSB7890-ES2F
  • Part Number : MSB7890-ES2F
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSB7890-ES2F.

Included

  • One (1) Seller refurbished Nvidia Mellanox MSB7890-ES2F 36x 100GB QSFP28 B-F Airflow (P2C) EDR Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
