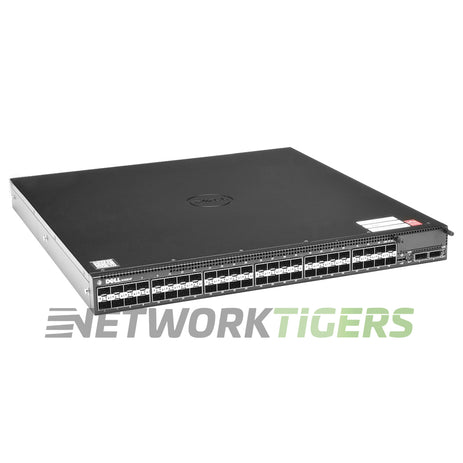

The Dell N4064F N4000 Series Switch is designed for high-performance networking. With its 48x 10GB SFP+ ports and 2x 40GB QSFP+ ports, this switch offers flexible connectivity options. It boasts a switching capacity of 1.28 Tbps, allowing for fast data transfer rates within your network.
With a forwarding rate of up to 952Mpps (million packets per second), the N4064F ensures efficient handling of network traffic. Its MAC Address Table Size supports up to 131,072 addresses, enabling seamless communication between devices.
This switch provides reliable performance and advanced features such as VLAN support and IPv6 management capabilities. It offers enhanced security with access control lists (ACLs) that allow users to define granular permissions based on IP or MAC address criteria.
Dell N4064F: 48x 10GbE SFP+ auto-sensing (10Gb/1Gb) fixed ports, 2x 40GbE QSFP+ fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included.
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 2x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ-45 Serial Console, 1x RJ-45 Gigabit Management, 1x USB (Type A)
- Stacking Ports : Network ports can be used for stacking - see below
- Stacking Options : The switches offer simple management and scalability via flexible user port stacking at 10Gbps or 40Gbps. The high-availability stacking architecture allows management of up to 12 switches from a single IP address. Up to 672 10GbE ports in a 12-unit stack
- Module Slots : 1x Expansion Module Slot - Modules not included - None Included.
- Module Options : NTRWH (4x 10 Gigabit SFP+), HPP69 (4x 10 Gigabit RJ45 module), 5KFVW (2x 40 Gigabit QSFP+ module)
- AirFlow Direction : Front to Back Airflow
- Fan Module Options : Redundant variable speed fans with Front-to-Back Airflow (Normal - I/O to PSU)
- Power Supplies Included : 2x DPS-460KB (XN7P4) 460W Power Supplies Included
- Packet buffer memory : 9MB
- Switching Capacity : 1.28 Tbps
- Forwarding Rate : 952 Mpps
- MAC Address Table Size : 131,072
- DRAM and Flash : Flash = 256MB
- Model Number : N4064F
- Part Number : N4064F
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell N4064F N4000 Series 48x 10GB SFP+ 2x 40GB QSFP+ Switch as described above
- Two (2) Power Cord Included
- Two (2) AC Power Supply Included
- One (1) Fan Module Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Rails Not Included
