The Cisco N5K-C5596UP-FA is a high-performance switch offering excellent Layer 2 and 3 performance. Its 48x 10GB SFP+ ports provide seamless connectivity for your network devices.
This switch boasts impressive hardware forwarding capabilities, with a layer 2 throughput of up to an astounding 1920 Gbps or around 1428 million packets per second (mpps). Its layer 3 performance reaches up to 160 Gbps or 240 mpps.
Featuring a MAC Address Table Size of 32,000 entries, this switch can easily handle large networks without reducing efficiency.

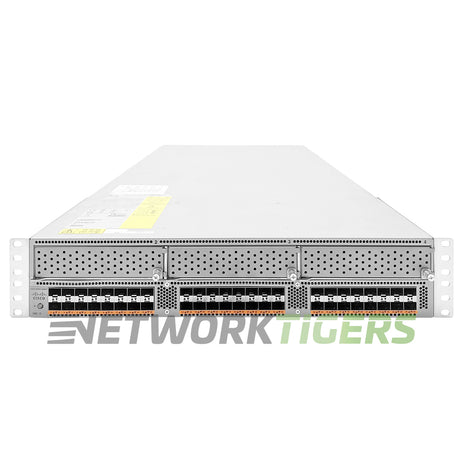

Cisco N5K-C5596UP-FA 48x 10GB SFP+ (Unified) 3x Module Slot F-B Air Switch
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Management Ports : 1x Gigabit Ethernet RJ45 Management, 1x Console RJ45 Management
- Module Slots : 3x Expansion Module Slots - Modules not included - sold separately.
- Module Options : N55-M16P (16-port 1/10GE Ethernet/FCoE module), N55-M8P8FP (8-port FC (8/4/2/1G) + 8-port Eth/FCoE Module), N55-M16UP (16-port Unified Port Expansion Module), N55-M4Q (4-port QSFP expansion module)
- AirFlow Direction : Front-to-Back Airflow (Port Side Intake)
- Fan Module Options : 4x N5596UP-FAN-B Fan Modules Included
- Power Supplies Included : 2x N55-PAC-1100W-B AC Power Supplies included
- Switching Capacity : Layer 2 hardware forwarding at 1920 Gbps or 1428 mpps; Layer 3 performance of up to 160 Gbps or 240 mpps
- MAC Address Table Size : 32,000
- Latency : Low-latency cut-through design that provides predictable, consistent traffic latency regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interfaces
- Model Number : N5K-C5596UP-FA
- Part Number : N5K-C5596UP-FA, N5K-C5596UP-FA-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco N5K-C5596UP-FA 48x 10GB SFP+ (Unified) 3x Module Slot F-B Air Switch as described above
- Two (2) Power Cords Included
- Two (2) AC Power Supplies Included
- Four (4) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
