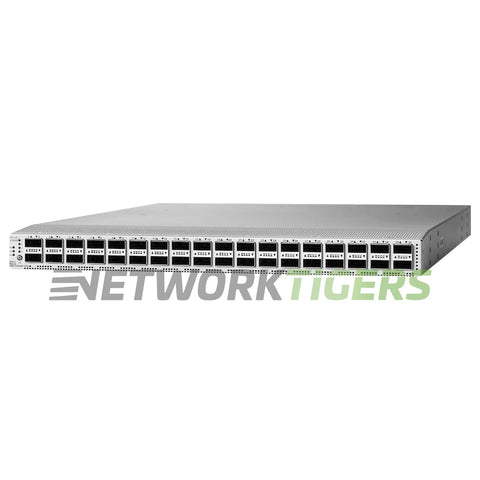

NEW Cisco N9K-C9336C-FX2 32x 100GB QSFP28 Front-to-Back Airflow Switch

NEW Cisco N9K-C9336C-FX2 32x 100GB QSFP28 Front-to-Back Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSN-8187
UPC: 889728116374

Overview

The Cisco N9K-C9336C-FX2 is a cutting-edge switch for high-performance networking. With 32x 100GB QSFP28 ports and front-to-back airflow, it offers efficient cooling and reliable connectivity. This switch has an optional power redundancy feature, ensuring uninterrupted operation.

Featuring a switching capacity of 7.2 Tbps, the N9K-C9336C-FX2 can easily handle heavy network traffic. It boasts a forwarding rate of 2.8 Bpps, enabling fast data transfer across your network.

This Cisco switch is built to deliver exceptional performance without effecting quality or reliability. Its advanced capabilities make it ideal for enterprise networks that demand speed and stability.

Cisco Nexus N9K-C9336C-FX2: Nexus 9K Fixed with 36p 40G/100G QSFP28.


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Port Supported Speeds : 1/10/25/40/100-Gbps Ethernet
  • Management Ports : 1x USB, 1x Console RJ45, 1x Out of Band Management RJ45, 1x Out of Band Management SFP
  • SSD : 128 GB
  • System Memory : 24 GB
  • AirFlow Direction : Front-to-Back Airflow (Port Side Intake / Reversed Airflow)
  • Fan Modules : 3x NXA-FAN-65CFM-B Fan Modules Included -
  • Power Supplies : 2x NXA-PAC-350W-PI PSU's Included - Front-to-Back Airflow (Port Side Intake / Reversed Airflow)
  • Switching Capacity : 7.2 Tbps
  • Forwarding Rate : 2.8 Bpps
  • MAC Address Table Size : 256,000
  • Max IPv4 LPM Routes : 896,000
  • Multicast Routes : 32,000
  • VLANs Supported : 3,967 (Max)
  • Packet Buffer : 40-MB
  • Latency : less than 1 microsecond
  • CPU : 4 cores
  • Model Number : N9K-C9336C-FX2
  • Part Number : N9K-C9336C-FX2, N9K-C9336C-FX2=, N9K-C9336C-FX2-WS
  • Condition : New


Included

  • One (1) NEW Cisco N9K-C9336C-FX2 32x 100GB QSFP28 Front-to-Back Airflow Switch as described above
