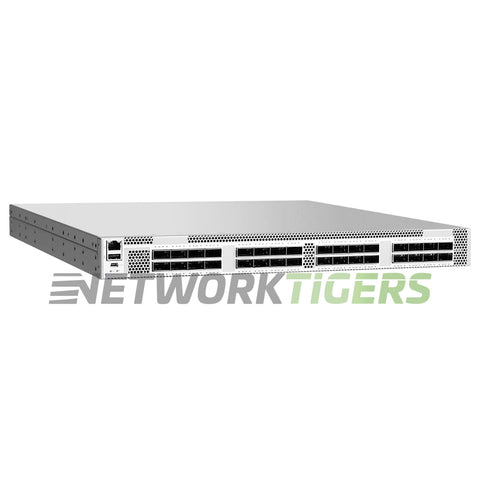

NEW Extreme Brocade BR-SLX-9240-32C-AC-F 32x 100GB QSFP28 F-B Airflow Switch
New

NEW Extreme Brocade BR-SLX-9240-32C-AC-F 32x 100GB QSFP28 F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3851

Overview

The Extreme Brocade BR-SLX-9240-32C-AC-F switch features 32 QSFP28 ports, each supporting up to 100GbE for high-bandwidth applications.

Designed with front-to-back airflow, it maintains efficient cooling in rack deployments. Support for Layer 2 and Layer 3 protocols enhances performance across data center operations. Advanced automation capabilities streamline management through network monitoring tools and telemetry functions. The compact form factor maximizes port density while maintaining scalability for large configurations.

Extreme Brocade BR-SLX-9240-32C-AC-F: SLX 9240-32C Switch AC with front-to-back airflow.


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Product Family : ExtremeSwitching SLX 9240 Series
  • Management Ports : 1x Console, 1x Out of Band Management, 1x USB
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Modules : 5x Field Replaceable Fans Included
  • Power Supplies : 2x Field Replaceable Power Supplies Included
  • Switching Capacity : 3.2 Tbps in and 3.2 Tbps out for a sum total of 6.4 Tbps
  • Forwarding Rate : (L2) 2.4 Bpps, (L3) 600 Mpps line-rate performance
  • MAC Address Table Size : Up to 48,000
  • Maximum IPv4 Unicast Routes : 48,000
  • Maximum IPv6 Unicast Routes : 8,000
  • VLANs Supported : 4,096
  • Packet Buffer : 24 MB (Dynamically Shared Packer Buffer)
  • Latency : 2.5 usec (Port to Port Latency)
  • : Included (1-RU)
  • Model Number : BR-SLX-9240-32C-AC-F
  • Part Number : BR-SLX-9240-32C-AC-F
  • Condition : New


Included

  • One (1) NEW Extreme Brocade BR-SLX-9240-32C-AC-F 32x 100GB QSFP28 F-B Airflow Switch as described above
