NEW Cisco NIM-2FXS/4FXO ISR 4000 Series 4x FXO 2x FXS Router Module
New

NEW Cisco NIM-2FXS/4FXO ISR 4000 Series 4x FXO 2x FXS Router Module

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-5154
UPC: 882658659454

Overview

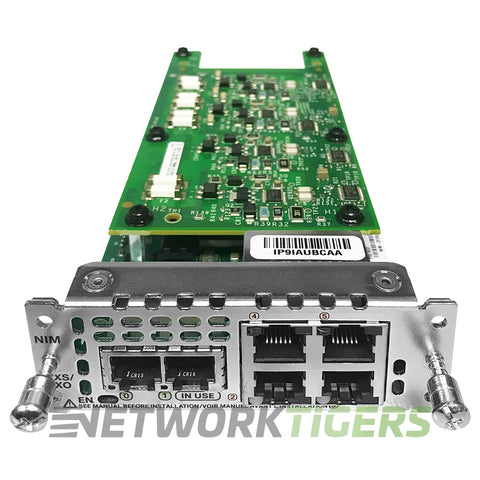

The Cisco NIM-2FXS/4FXO is an analog voice combination module with 2 FXS/DID ports and 4 FXO ports, 6 in total, for the NIM slots of Cisco ISR 4300 and 4400 Series routers. The FXO ports connect to analog phone lines and the FXS ports to local phones or fax machines.

The FXS ports run as FXS or DID, and DID ports do not support caller ID; the FXO ports support ground start and loop start. An onboard DSP serves these ports, so no PVDM is needed on the router motherboard. It can also use an SM-X slot through the NIM carrier card. Voice use requires at least the Unified Communications technology package, not included, sold separately.

This listing includes the module only.

Prefer it seller refurbished? See the NIM-2FXS/4FXO seller refurbished module. Need a different port mix? Consider the NIM-4FXS 4-port FXS voice module.

This Cisco NIM-2FXS/4FXO voice module is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 4x FXO, 2x FXS/FXS-E/DID
  • Designed For : Cisco ISR 4300 and 4400 Series
  • Model Number : NIM-2FXS/4FXO
  • Part Number : NIM-2FXS/4FXO, NIM-2FXS/4FXO=, NIM-2FXS/4FXO-WS, NIM-2FXS/4FX0
  • Condition : New


Included

  • One (1) New Cisco NIM-2FXS/4FXO ISR 4000 Series 4x FXO 2x FXS Router Module as described above
