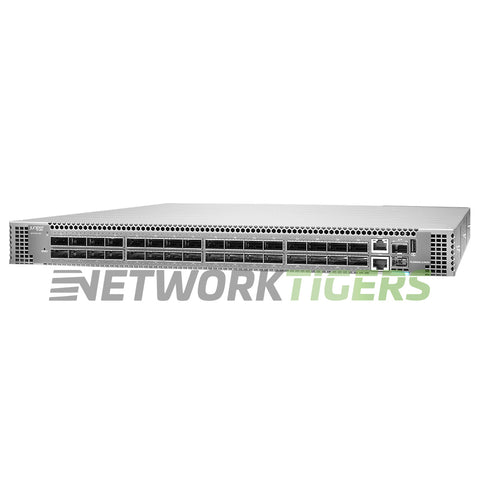

NEW Juniper QFX5120-32C-AFI 32x 100GB QSFP28 B-F Airflow Switch
New

NEW Juniper QFX5120-32C-AFI 32x 100GB QSFP28 B-F Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

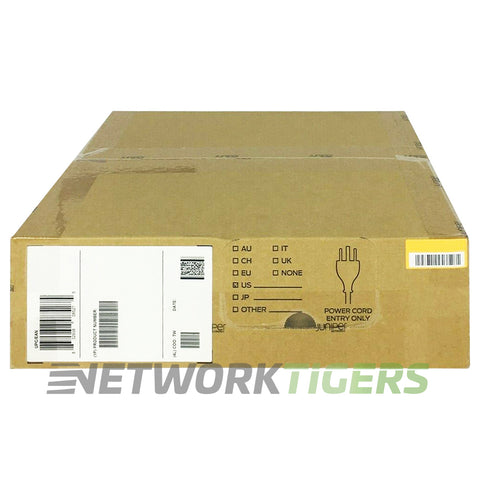

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3712
UPC: 832938090330

Overview

The Juniper QFX5120-32C-AFI is a powerful switch designed for high-performance data centers. With 32 ports supporting QSFP28 transceivers, it offers blazing-fast speeds of up to 100GB per second. This allows for quick and efficient data transfer within your network.

With its impressive switching capacity of 3.2 Tbps (Terabits per second) and forwarding rate of 2 Bpps (Billion packets per second), the QFX2126-DA delivers exceptional performance even under heavy workloads.

This switch also features a large MAC address table size of 288,000 entries, enabling seamless communication between devices in your network without any bottlenecks or interruptions.

Juniper QFX5120-32C-AFI: QFX5120-32C, 32x100GbE, 1U, AC airflow in.


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Product Family : QFX5120 Series
  • Management Ports : 1x USB, 1x Console RJ45
  • Switch Version : Junos
  • System Memory : 16 GB memory and 64 GB SSD storage
  • AirFlow Direction : Back-to-Front Airflow
  • Fan Modules : 6x QFX5110-FANAFI Fan Modules Included - Back-to-Front Airflow
  • Power Supplies : 2x QFX520048Y-650W-AC-AFI AC PSU's
  • Switching Capacity : 6.4 Tbps (bidirectional)/2 Bpps
  • Forwarding Rate : 2 Bpps
  • MAC Address Table Size : 288,000
  • Multicast Routes : 104,000 (IPv4)
  • VLANs Supported : 4093
  • Packet Buffer : 32MB
  • Latency : with latency as low as 550 nanoseconds
  • CPU : 2.2 GHz quad-core Intel CPU
  • Model Number : QFX5120-32C-AFI
  • Part Number : QFX5120-32C-AFI
  • Condition : New


Included

  • One (1) NEW Juniper QFX5120-32C-AFI 32x 100G QSFP28 Back to Front Airflow Switch as described above
