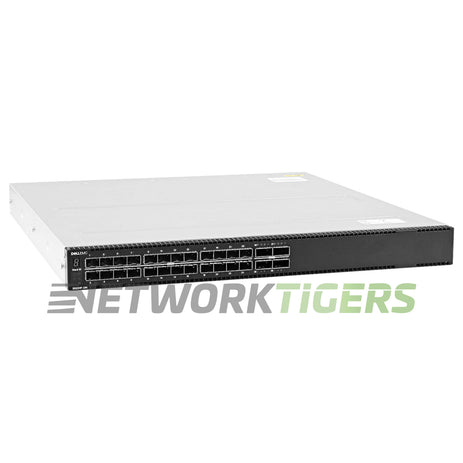

Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air No OS10 Switch

Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air No OS10 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9766
UPC: 011110666000

Overview

The Dell S5224F-ON is a high-performance switch designed to meet the demands of modern networking environments. With 24x 25GB SFP28 and 4x 100GB QSFP28 ports, this switch offers impressive connectivity options for data centers and enterprise networks.

This switch has a capacity of 1.08Tbps, allowing for fast and efficient data transfers within the network. Its forwarding rate stands at an impressive 1488Mpps, ensuring smooth traffic flow even during peak usage.

With a MAC Address Table Size of up to 160,000 addresses supported by this switch, it can scale as your network grows. The latency level on this device also impresses, with only around 881 nanoseconds per frame, which ensures minimal delays when processing large amounts of information.

Dell S5224F-ON: Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal). Does NOT include OS10.


Specifications

  • Network Ports : 24x 25 Gigabit Ethernet SFP28
  • Uplink Ports : 4x 100 Gigabit Ethernet QSFP28
  • Management Ports : 1 RJ45 Console/Management with RS232 signaling
  • IPv6 Routes : 64K
  • IPv4 Routes : 128K
  • Multicast Hosts : 32K
  • Packet Buffer : 32MB
  • Switch Version : Does NOT include OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow / Normal)
  • Fan Module Options : 4x Fan Modules
  • Power Supplies Included : 2x Hot Swappable Dual Redundant Power Supplies
  • SSD : 32GB
  • Switching Capacity : 1.08 Tbps (2.16Tbps full-duplex)
  • Forwarding Rate : 1488 Mpps
  • MAC Address Table Size : 160,000
  • Latency : 881 (nano sec)
  • CPU Memory : 16GB
  • Model Number : S5224F-ON
  • Part Number : S5224F-ON
  • Condition : Seller refurbished

Datasheet

More information on this Dell S5224F-ON.

Included

  • One (1) Seller Refurbished Dell S5224F-ON 24x 25GB SFP28 4x 100GB QSFP28 Front-to-Back Air No OS10 Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
