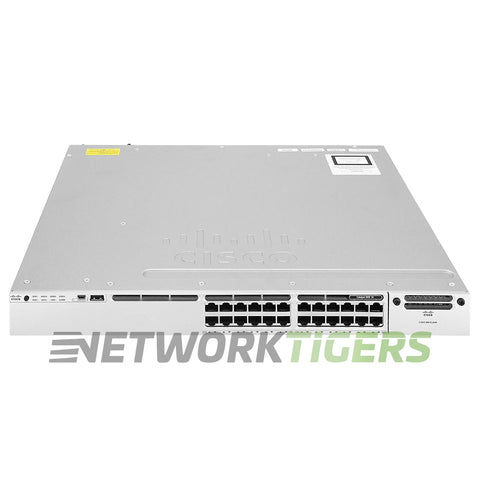

NEW Cisco WS-C3850-24PW-S 24x 1GB PoE+ RJ-45 1x Slot Manages 5x APs Switch
New

NEW Cisco WS-C3850-24PW-S 24x 1GB PoE+ RJ-45 1x Slot Manages 5x APs Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

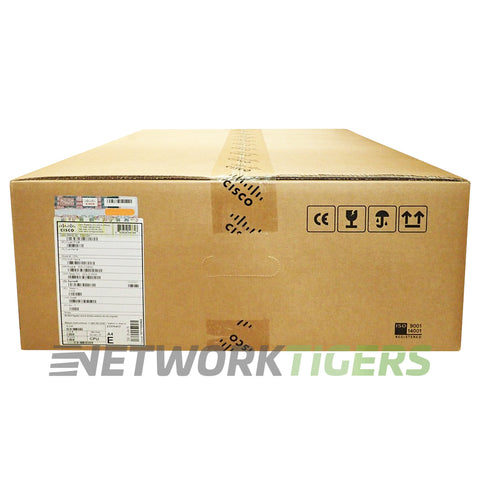

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1770
UPC: 882658575327

Overview

The Cisco WS-C3850-24PW-S Catalyst Switch is a high-performance networking device designed for enterprise use. Its 24 Power over Ethernet (PoE) ports provide power and connectivity to devices such as IP phones, wireless access points, and surveillance cameras.

The W version offers the ability to control five Cisco access points. The WS-C3850-24PW-S switch offers a switching capacity of up to 92 Gbps, allowing fast and efficient data transfer within the network. It also has a forwarding rate of up to 68.4 Mpps, ensuring smooth traffic flow even in demanding environments.

This Catalyst switch comes with numerous advanced features, including support for IPv6 routing protocol OSPFv3, Hot Standby Routing Protocol (HSRP), and Quality-of-Service (QoS) capabilities, providing flexibility and reliability essential in a corporate network.

Cisco Catalyst WS-C3850-24PW-S: Catalyst 3850 24 PoE+ port with the ability to manage 5x Wireless APs.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE+ (Manages 5 x Access Points)
  • Uplink Ports : Through the use Expansion Module - See "Module Slots and Options"
  • Management Ports : 1x RJ-45 Console, 1x Gigabit Management RJ-45, 1x USB (Type A), 1x USB (Mini Type A)
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors - Cables sold separately
  • Stacking Options : Stacking bandwidth is 480 Gbps
  • Stacking Cable Options : CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise)
  • Module Slots : 1x Expansion Module Slots - Modules are not included
  • Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
  • Switch Version : IP Base with the ability to manage 5x Cisco Wireless Access Points
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x C3850-FAN-T1 Fan Modules Included
  • Power Supplies Included : 1x PWR-C1-715WAC 715W PSU Included - 2x Slots
  • Power Supply Options : PWR-C1-1100WAC, PWR-C1-715WAC
  • PoE Budget : 435W (with 1x 715WAC)
  • Switching Capacity : 92 Gbps
  • Forwarding Rate : 68.4 Mpps
  • MAC Address Table Size : 32,000
  • Model Number : WS-C3850-24PW-S
  • Part Number : WS-C3850-24PW-S, WS-C3850-24PW-S=, WS-C3850-24PW-S-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-24PW-S 24x 1GB PoE+ RJ-45 1x Module Slot manages 5x Access Points as described above
