NEW Cisco WS-C3850-24T-L Catalyst 3850 24x 1GB RJ45 1x Exp Module Slot Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-1763
UPC: 882658547744

Overview

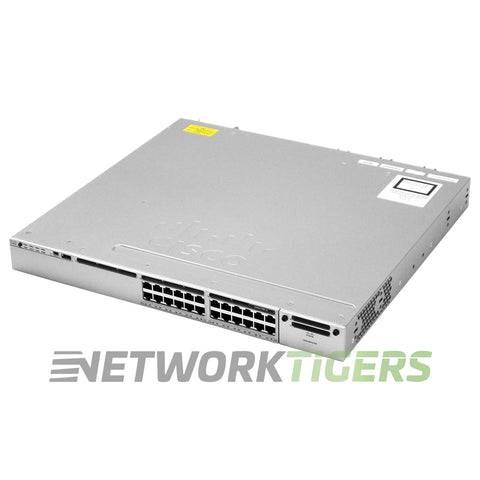

The Cisco WS-C3850-24T-L is a stackable 1RU Catalyst 3850 access switch with 24 10/100/1000 RJ45 ports for desktops, printers and other wired devices that draw no PoE. The -L suffix marks the LAN Base feature set in Cisco's ordering list, covering Layer 2 access switching with limited static routing.

Cisco rates the 24-port copper model at 92 Gbps of switching capacity and 68.4 Mpps forwarding, with 4 GB of DRAM. Uplinks go in the front network module slot: the C3850-NM-4-1G gives four 1GB SFP ports, and the C3850-NM-2-10G runs two of its four SFP ports at 10GB. StackWise-480 joins up to nine switches with 480 Gbps of stack bandwidth, and StackPower pools power across up to four.

This unit is new open box and ships as Cisco configures it: one PWR-C1-350WAC in one of two power supply bays and three field-replaceable fan modules. No network module or transceivers are included, and Cisco notes StackPower cables for LAN Base models are bought separately.

Need PoE for phones or access points? The NEW Cisco WS-C3850-24P-L has the same layout with PoE+ on all 24 ports. For uplinks, see the NEW C3850-NM-2-10G 1/10GB SFP module or the NEW C3850-NM-4-1G 1GB SFP module. For a different feature set, see the NEW Cisco WS-C3850-24T-S IP Base version or the NEW Cisco WS-C3850-24T-E IP Services version. A seller refurbished Cisco WS-C3850-24T-L is also listed.

This switch is new open box and covered by the NetworkTigers one-year warranty.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet RJ45
  • Uplink Ports : Through an optional network module - see Module Options
  • Management Ports : 1x USB Type A, 1x Console Mini USB Type B, 1x RS-232 RJ45 Management, 1x Gigabit Ethernet Management
  • Stacking Ports : 2x Cisco StackWise 480 connectors, 2x Cisco StackPower Connectors
  • Stacking Options : Stacking bandwidth is 480 Gbps
  • Stacking Cable Options : Cables sold separately - CAB-SPWR-30CM, CAB-SPWR-150CM (StackPower), STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise)
  • Module Slots : 1x Network Module Slot - Modules are not included
  • Module Options : C3850-NM-4-1G (4x 1GB SFP), C3850-NM-2-10G (4x 1GB SFP/ 2x 10GB SFP+)
  • Switch Version : LAN Base Version
  • AirFlow Direction : Front-to-Back (Port-Side Intake)
  • Fan Module Options : 3x FAN-T1 (3 fan bays)
  • Power Supplies Included : 1x PWR-C1-350WAC (2 power supply bays)
  • Power Supply Options : Options are - PWR-C1-350WAC, PWR-C1-715WAC, PWR-C1-1100WAC - DC Power available using PWR-C1-440WDC.
  • Switching Capacity : 92 Gbps
  • Forwarding Rate : 68.4 Mpps
  • MAC Address Table Size : 32,000
  • DRAM and Flash : 4 GB DRAM, 2 GB Flash
  • Model Number : WS-C3850-24T-L
  • Part Number : WS-C3850-24T-L, WS-C3850-24T-L=, WS-C3850-24T-L-WS
  • Condition : New


Included

  • One (1) NEW Cisco WS-C3850-24T-L Catalyst 3850 24x 1GB RJ45 1x Exp Module Slot Switch as described above
