The Dell Z9100-ON is a member of the Dell EMC Z-Series of network switches and related products. These switches have a fixed configuration and are perfect for applications in high-performance environments.
The Dell Z9100-ON-RA EMC Z-Series is a high-performance, state-of-the-art networking switch for enterprise-level organizations. The Dell Z9100-ON-RA has impressive throughput capacity. It delivers an astounding 4400 Mpps forwarding rate (full duplex) with support for up to 32 ports at speeds up to 100G bE.
This unit has a back-to-front or power supply to data port airflow. You want this airflow if your network cabling is in the "hot corridor" of your data center servers.

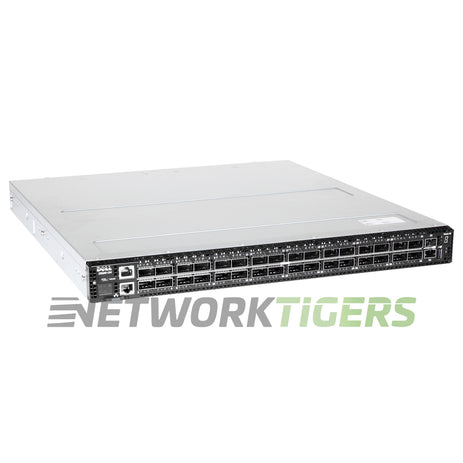

Dell Z9100-ON-RA EMC Z-Series 32x 100GB QSFP28 Back-Front Airflow OS10 Switch
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : Includes OS10
- System Memory : 8GB (CPU)
- AirFlow Direction : Back-to-Front Airflow (PSU to I/O Panel Airflow - Reversed)
- Fan Modules : 5x Fan Subsystems Included
- Power Supplies : 2x AC Power Supplies Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 4400 Mpps (Full Duplex)
- MAC Address Table Size : 136,000
- IPv4 Unicast routes : 136K
- IPv6 Unicast routes : 68K
- IPv4 Multicast routes : 68K
- VLANs Supported : Layer 2 VLANs - 4K per port
- Packet Buffer : 16MB
- Latency : Sub 500ns
- Model Number : Z9100-ON-RA
- Part Number : Z9100-ON-RA, Z9100-ON RA
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell Z9100-ON-RA EMC Z-Series 32x 100GB QSFP28 Back-Front Airflow OS10 Switch as described above
- Two (2) AC Power Supplies Included
- Two (2) Power Cords Included
- Five (5) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Rails Not Included
