The Arista CCS-720XP-24ZY4-F switch offers a high PoE budget of 509W with default 1x 650W AC PSU, expanding to 1787W with dual 1050W AC PSUs. It boasts a switching capacity throughput of up to 180 (360) Gbps and a forwarding rate of268 Mpps.
The switch features an impressive MAC Address Table Size of 112,000 and low latency at just 1.2 microseconds - ideal for demanding network environments requiring efficient data processing speeds. With its multiple power supply options and robust performance metrics, the Arista CCS-720XP-24ZY4-F is designed for reliable operations in dynamic enterprise settings where fast data handling is critical.

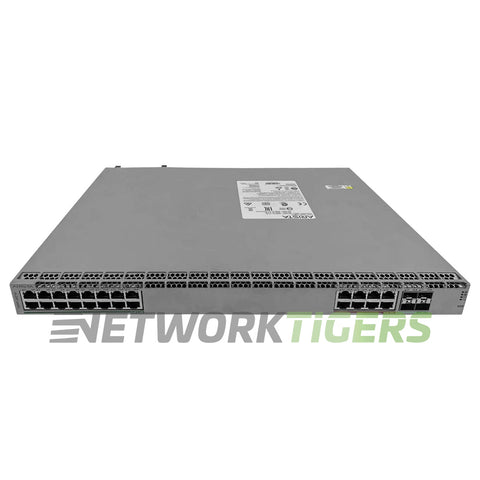

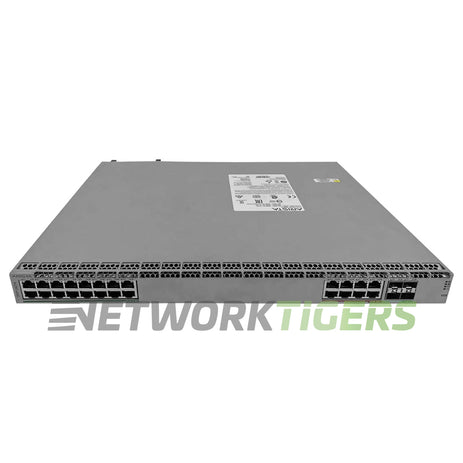

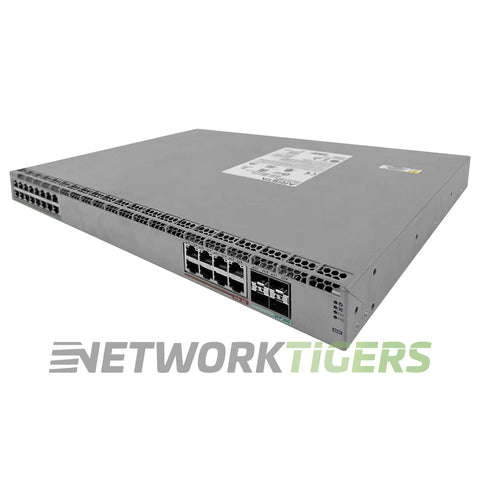

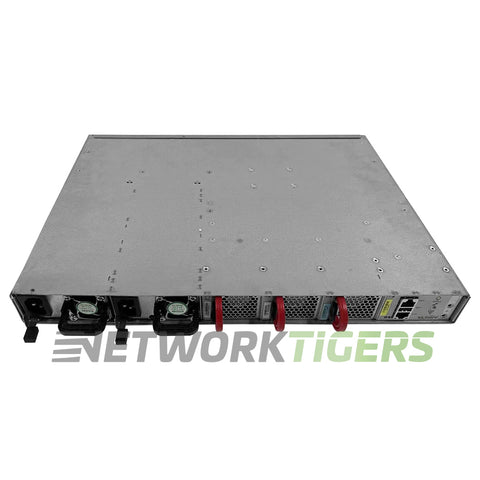

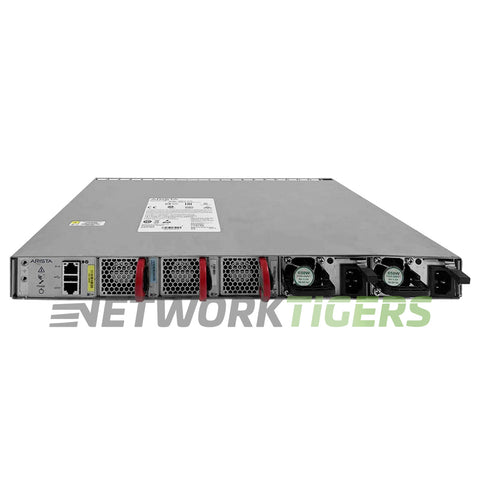

Arista CCS-720XP-24ZY4-F 24x MultiGB PoE RJ45 4x 25GB SFP F-B Airflow Switch
- Network Ports : 16x 100MB - 2.5 Gigabit Ethernet PoE RJ45 (30W per port - 802.3af/at), 8x 100MB - 5 Gigabit Ethernet PoE RJ45 (60W per port - 802.3bt)
- Uplink Ports : 4x 25 Gigabit Ethernet SFP+
- Management Ports : 1x Console RJ45, 1x Gigabit Management RJ45, 1x USB
- CPU : Dual Core-x86
- VLAN ID's : 4096
- Packet Buffer : 6MB
- Product Family : 720XP Series
- Switching Bandwidth : 1120 Gbps
- Switch Version : Arista EOS
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 3x FAN-7000-F Fan Modules Included - Front-to-Back Airflow
- Power Supplies Included : 2x Slots - 1x PWR-621-AC-RED 650W AC PSU Included - Front-to-Back Airflow
- Power Supply Options : PWR-1021-AC-RED (1050W AC), PWR-521-DC-RED (500W DC)
- PoE Budget : 509W (w/ Default 1x 650W AC PSU), 1047W (w/ Dual 650W AC PSU's) - 1787W w/ Dual 1050W AC, 794W w/ Dual 500W DC PSU's
- Throughput (FDX) : 180 (360) Gbps
- Forwarding Rate : 268 Mpps
- MAC Address Table Size : 112,000
- Latency : 1.2 microseconda
- DRAM and Flash : 4GB Flash, 4GB System Memory
- Model Number : CCS-720XP-24ZY4-F
- Part Number : CCS-720XP-24ZY4-F
- Condition : Seller refurbished
- One (1) Seller Refurbished Arista CCS-720XP-24ZY4-F 16x 2.5GE PoE 8x 5GE PoE 4x 25G SFP F-B Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
