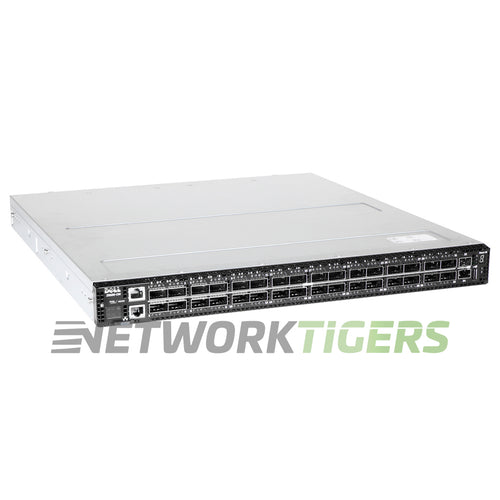

Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 OS10 Front-to-Back Air OS10 Switch

Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 OS10 Front-to-Back Air OS10 Switch

$ 5,569.99
$ 2,031.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.
  Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSH-9198
UPC: 11110529664

Overview

The Dell Z9100-ON EMC Z-Series is a high-performance switch designed for data centers. Its front-to-back airflow and OS10 operating system ensures efficient cooling and easy management. This switch has a switching capacity of 6.4 Tbps, allowing for seamless data transfer within the network.

At a forwarding rate of 4400 Mpps (Full Duplex), this switch can handle heavy network traffic without compromising performance. It also features a MAC Address Table Size of 136,000 entries, enabling it to support large-scale networks with multiple devices.

One notable feature of the Dell Z9100-ON is its low latency, measuring below 500ns. This means that data packets are processed quickly and efficiently by the switch.

Dell Z9100-ON: 32x 100 Gigabit Ethernet QSFP28 switch with 6.4 Tbps switching capacity. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal). Includes OS10.


Specifications

  • Network Ports : 32x 100 Gigabit Ethernet QSFP28
  • Uplink Ports : 2x 10 Gigabit Ethernet SFP+
  • Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
  • Switch Version : Includes OS10
  • AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Fan Module Options : 5x Fan Subsystems Included - Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
  • Power Supplies Included : 2x AC Power Supplies Included
  • Switching Capacity : 6.4 Tbps
  • Forwarding Rate : 4400 Mpps (Full Duplex)
  • MAC Address Table Size : 136,000
  • Latency : Sub 500ns
  • Model Number : Z9100-ON
  • Part Number : Z9100-ON
  • Condition : Seller refurbished


Included

  • One (1) Seller Refurbished Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 OS10 Front-to-Back Air OS10 Switch as described above
  • Two (2) AC Power Supplies Included
  • Two (2) Power Cords Included
  • Five (5) Fan Modules Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
  • Rack Mount Rails Not Included
  • OS10 Not installed nor licensed
