The NEW EdgeCore 5610-52X-O-AC-F-US AS5610-52X switch delivers a non-blocking switching capacity of 640 Gbps and supports a forwarding rate of up to 960 Mpps. It features forty-eight SFP+ ports for high-speed 10GbE connections and four QSFP+ ports providing flexible uplink or stacking options at higher speeds.
The MAC address table accommodates up to 128,000 entries for growing network demands. At the same time, low latency ranges from 860 nanoseconds to approximately 1.2 microseconds in L2/L3 cut-through mode under full line-rate traffic conditions.
Compact and energy-efficient design caters well towards handling complex data center interconnectivity requirements efficiently over Layer Two (L2) & Three (L3).

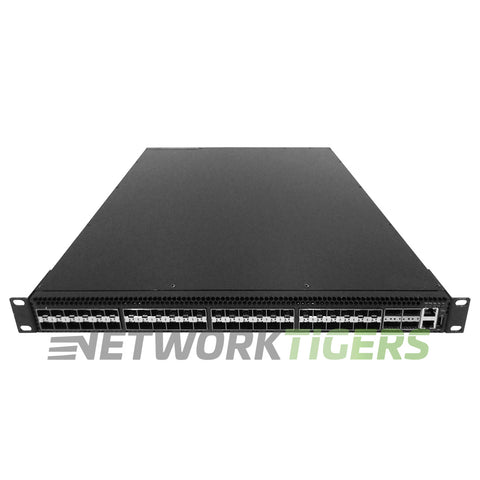

NEW EdgeCore 5610-52X-O-AC-F-US AS5610-52X 48x 10GB SFP+ 4x QSFP+ F-B Switch
- Network Ports : 48x 10 Gigabit Ethernet SFP+
- Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
- Management Ports : 1x RJ45 Serial Console, 1x RJ45 Out of Band Management, 1x USB
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 4x FAN-1U-1x14-F Fan Modules Included
- Power Supplies Included : 2x PSU-AC-400-F Power Supplies Included
- Switching Capacity : 640 Gbps
- Forwarding Rate : 960 Mpps
- MAC Address Table Size : 128,000
- Latency : 860 ns to 1.2 us (L2/L3, cut thru, full line rate)
- Model Number : 5610-52X-O-AC-F-US
- Part Number : 5610-52X-O-AC-F-US, AS5610-52X
- Condition : New
- One (1) NEW EdgeCore 5610-52X-O-AC-F-US AS5610-52X 48x 10GB SFP+ 4x QSFP+ F-B Switch as described above
