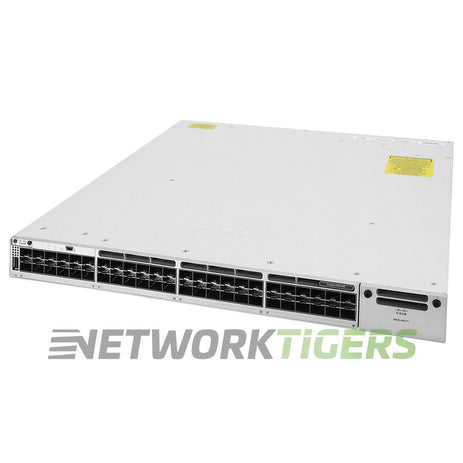

The Cisco C9300-48S-E is a high-performance switch from the Catalyst 9300 series. It features 48 Gigabit Ethernet ports with SFP (Small Form-Factor Pluggable) interfaces and an expansion module slot for additional connectivity options.
With a switching capacity of up to 256 Gbps (or 736 Gbps when stacked), this switch ensures fast and reliable network performance even in demanding environments. The forwarding rate is approximately 190.47 Mpps on its own, increasing to about 547.62 Mpps when stacking multiple switches together.
A notable feature is its MAC address table size of 32,000 entries, allowing it to handle large-scale networks efficiently while maintaining optimal data flow.
Cisco C9300-48S-A: Catalyst 9300 48x 1Gb SFP ports, Network Essentials.
- Network Ports : 48x 1 Gigabit Ethernet SFP
- Management Ports : 1x RJ45, 1x USB 2.0, 1x Mini USB
- Stacking Ports : 2x StackWise 480 ports, 2x StackPower connection ports - Cables sold separately
- Stacking Cable Options : STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M (StackWise 480), CAB-SPWR-30CM, CAB-SPWR-150CM (Stack Power) - Not Included
- Module Slots : 1x Expansion Module Slot - None included
- Module Options : C9300-NM-4G, C9300-NM-8X, C9300-NM-2Q, C9300-NM-4M, C9300-NM-2Y - Please note - Existing 3850 network modules are also supported in the Cisco Catalyst 9300 Series platforms.
- Switch Version : Network Essentials
- Fan Module Options : 3x FAN-T2 Field Replaceable Fans
- Power Supplies Included : 1x PWR-C1-715WAC Included (two slots available)
- Power Supply Options : PWR-C1-715WAC or PWR-C1-1100WAC
- Switching Capacity : 256 Gbps (736 Gbps with Stacking)
- Forwarding Rate : 190.47 Mpps (547.62 Mpps with Stacking)
- MAC Address Table Size : 32,000
- DRAM : 8 GB
- Model Number : C9300-48S-E
- Part Number : C9300-48S-E, C9300-48S-E=, C9300-48S-E-WS
- Condition : Seller refurbished
- One (1) Seller refurbished Cisco C9300-48S-E Catalyst 9300 48x 1GB SFP 1x Expansion Module Slot Switch as described above
- One (1) Power Cord Included
- One (1) AC Power Supply Included
- Three (3) Fan Modules Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Network Modules Not Included
