NEW Arista DCS-7050SX3-48YC12-F 48x 25GB SFP+ 12x 100GB QSFP F-B Airflow Switch
New

NEW Arista DCS-7050SX3-48YC12-F 48x 25GB SFP+ 12x 100GB QSFP F-B Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

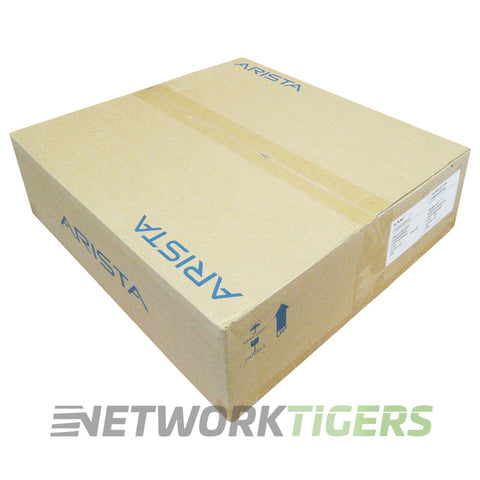

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-3615

Overview

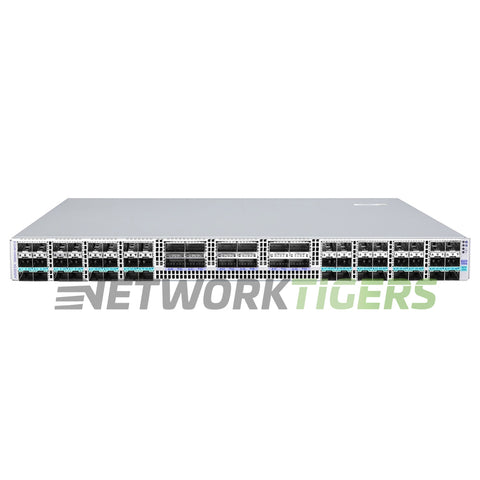

The Arista DCS-7050SX3-48YC12-F is a high-performance switch with excellent switching capacity, making it ideal for demanding network environments. It offers 48x 25GB SFP+ and 12x 100GB QSFP ports to fulfill the ever-increasing bandwidth requirements of modern data centers.

With a switching capacity of up to 4.8 Tbps, this switch ensures smooth and reliable data transfers even in heavy traffic situations. With a forwarding rate of 2 Bpps (billion packets per second), packet delivery speed won't be an issue either.

Equipped with a MAC address table size capable of storing up to 288,000 addresses, this switch allows efficient routing across your network while minimizing latency as low as 800ns (nanoseconds).

Arista DCS-7050SX3-48YC12-F: Arista 7050X3, 48x 25GbE SFP and 12x 100GbE QSFP switch, front-to-rear (front-to-back) air, 2x AC, 2x C13-C14 cords.


Specifications

  • Network Ports : 48x 25 Gigabit Ethernet SFP+
  • Uplink Ports : 12x 100 Gigabit Ethernet QSFP
  • Management Ports : 1x Gigabit Management RJ45, 1x RS-232 RJ45, 1x USB Type A
  • Packet Buffer : 32MB
  • VLAN ID's : 4096
  • CPU : Quad-Core x86
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 4x FAN-7000H-F Fan Modules Included
  • Power Supplies Included : 2x PWR-500AC-F AC Power Supplies Included
  • Switching Capacity : 4.8 Tbps
  • Forwarding Rate : 2 Bpps
  • MAC Address Table Size : 288,000
  • Latency : 800 ns
  • DRAM and Flash : 8GB DRAM, 8GB Flash
  • Model Number : DCS-7050SX3-48YC12-F
  • Part Number : DCS-7050SX3-48YC12-F
  • Condition : New


Included

  • One (1) NEW Arista DCS-7050SX3-48YC12-F 48x 25GB SFP+ 12x 100GB QSFP F-B Airflow Switch as described above
