The NEW Ruckus Brocade ICX7450-48 is a 48-port Gigabit RJ45 switch offering three modular expansion slots for flexible uplink and stacking options. It supports optional modules like the ICX7400-4X1GF (4x 1GbE SFP), ICX7400-4X10GF (4x 10GbE SFP+), or the ICX7400-1X40GQ (one port, 40 GbE).
One module slot is located on the front panel, while two additional slots are at the rear of the unit. Delivering up to a switching capacity of 336 Gbps and a forwarding rate of up to 250 Mpps ensures robust data throughput in various applications.

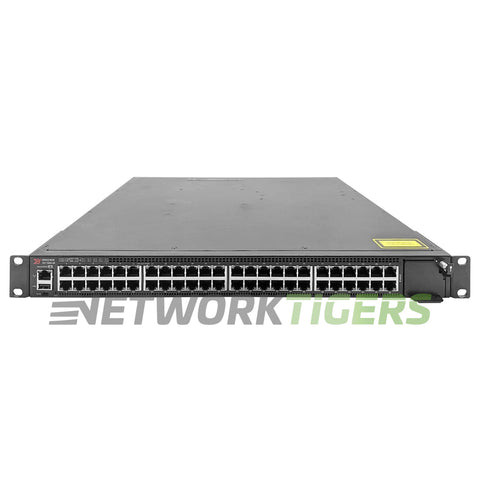

NEW Ruckus Brocade ICX7450-48 48x 1GB RJ45 Switch w/ 3x Expansion Module Slots
- Network Ports : 48x 1 Gigabit Ethernet RJ45
- Product Family : ICX 7450 Series (Ruckus, Previously Brocade)
- Management Ports : 1x Mini-USB RS232 Serial port (Mini-B plug), 1x RJ45 Gigabit Ethernet Management port, 1x USB port
- Stacking Ports : Possible through the use of ICX7400-1X40GQ Modules - Not Included
- Module Slots : 3x Optional Modules slots for Uplink/Stacking - None Included - ordered separately (1x Module Slot on front of switch, 2x Module Slots on rear of switch)
- Module Options : ICX7400-4X1GF (4x 1GB SFP), ICX7400-4X10GF (4x 10GB SFP+), ICX7400-4X10GC (4x 10GB RJ45), ICX7400-1X40GQ (1x 40GB Uplink/Stack), ICX7400-SERVICE-MOD (Service Module) - None Included
- Fan Module Options : 2x Fan Module Slots - Not Included - Options are ICX-FAN10-E (F-B Airflow), ICX-FAN10-I (B-F Airflow)
- Power Supplies Included : Not Included - 2x PSU Slots
- Power Supply Options : RPS16-E (PoE 1,000W AC F-B Air), RPS16-I (PoE 1,000W AC B-F Air) - Ordered Separately
- Stack Members : It offers market-leading stacking density with up to 12 switches (576x 1 GbE and 144x 1/10 GbE ports) per stack and combines chassis-level performance with “pay as you grow” scalability of a stackable solution
- Switching Capacity : 336 Gbps
- Forwarding Rate : 250 Mpps
- MAC Address Table Size : 32,768
- Model Number : ICX7450-48
- Part Number : ICX7450-48
- Condition : New
- One (1) NEW Ruckus Brocade ICX7450-48 48x 1GB RJ45 Switch w/ 3x Expansion Module Slots as described above
