The HPE Aruba JL659A CX 6300 Series is a high-performance switch designed for enterprise networks. With its 48x 5GB PoE RJ45 and 4x 25GB SFP56 ports, this switch provides flexible connectivity options to meet the needs of various network environments.
Boasting a powerful PoE budget of up to 2880W, it can easily support numerous power-hungry devices, such as wireless access points or IP cameras, without requiring additional power injectors.
This switch also offers impressive performance with a switching capacity of up to 880 Gbps and a forwarding rate of 654 Mpps – ensuring fast and seamless data transmission throughout your network infrastructure.
HPE Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch
- Network Ports : 48x 5 Gigabit Ethernet PoE++ RJ45 (Up to 60W per port)
- Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, and 25GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 2x Fan Tray Slots - 2x Fan Tray Included
- Power Supplies Included : 2x PSU Slots - 1x Min Required - Ordered Separately
- Power Supply Options : JL086A (680W AC), JL087A (1050W AC), JL670A (1600W AC)
- PoE Budget : 2880W
- Switching Capacity : 880 Gbps
- Forwarding Rate : 654 Mpps
- MAC Address Table Size : 32,768
- 1Gbps : = 2.28μSec, 10Gbps = 1.46μSec, 25Gbps = 1.90μSec, 50Gbps = 3.49μSec
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL659A
- Part Number : JL659A, JL659A#ABA
- Condition : Seller refurbished

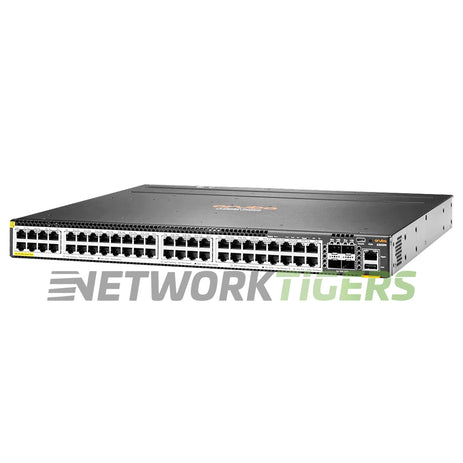

- One (1) Seller refurbished HPE Aruba JL659A CX 6300 Series 48x 5GB PoE++ RJ45 4x 50GB SFP56 Switch as described above
- One (1) Fan Module Included
- One (1) Set of Rack Mount Brackets Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
