The HPE Aruba JL661A CX 6300 Series Switch is a powerful networking solution designed to meet the demands of modern enterprise networks. With its 48x1GB PoE+ RJ45 ports and 4x25GB SFP56 ports, this switch allows for high-speed data transfer and connectivity.
With a high PoE budget of 1440W, it can provide power to multiple devices such as IP phones, wireless access points, or security cameras without additional power supplies.
The switching capacity of the JL661A is an impressive 496 Gbps with a forwarding rate of up to 369 Mpps. This ensures fast and efficient performance even during periods of heavy network traffic. The MAC Address Table Size is expansive at 32,768 entries, allowing seamless communication between connected devices.

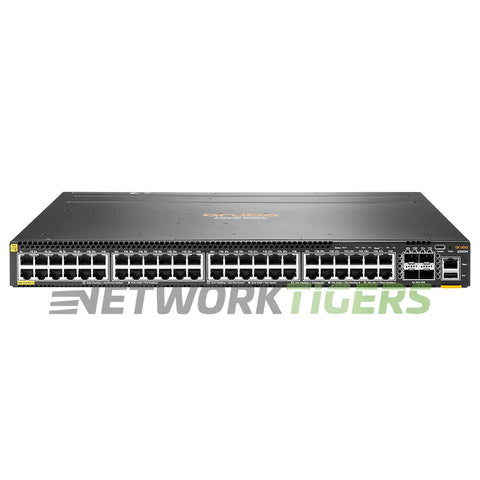

HPE Aruba JL661A: Aruba 6300M Switch 48x 1GbE RJ45 PoE+ ports, 4x SFP56 ports.
- Network Ports : 48x 1 Gigabit Ethernet PoE+ RJ45 - IEEE 802.3bt Class 6 (60W)
- Uplink Ports : 4x 1/10/25/50 Gigabit Ethernet SFP56 (Also used as stacking ports)
- Management Ports : 1x USB-C Console Port, 1x OOBM, 1x USB Type A Host, 1x Bluetooth dongle to be used with CX Mobile App
- Stacking Ports : SFP56 Uplink ports are used for stacking - They support speeds of 1GB, 10GB, and 25GB for a total of up to 200 Gbps of stacking throughput per switch
- Stacking Options : Support for up to 10 switches (or members) in a stack via chain or ring topology
- Stacking Cable Options : 10GB = J9281D, J9283D | 25GB = JL487A, JL488A, JL489A | 50GB = R0M46A, R0M47A
- AirFlow Direction : Front-to-Back Airflow
- Fan Module Options : 1x Fan Tray Included - 2x Fan Tray Slots - JL761A is an option for Back-to-Front Airflow
- Power Supplies Included : 2x PSU Slots - None Included - 1x Min Required - Ordered Separately
- Power Supply Options : JL086A (680W AC), JL087A (1050W AC), JL670A (1600W AC)
- PoE Budget : 1440W (24 at 802.3bt 60W per port)
- Switching Capacity : 496 Gbps
- Forwarding Rate : 369 Mpps
- MAC Address Table Size : 32,768
- Latency : 1Gbps = 2.28ųSec, 10Gbps = 1.46ųSec, 25Gbps = 1.90ųSec, 50Gbps1 = 3.49ųSec
- DRAM and Flash : 8GB DDR4, 32GB eMMC
- Model Number : JL661A
- Part Number : JL661A, JL661A#ABA
- Condition : New
- One (1) NEW HPE Aruba JL661A CX 6300 Series 48x 1GB PoE+ RJ45 4x 50GB SFP56 Switch as described above
