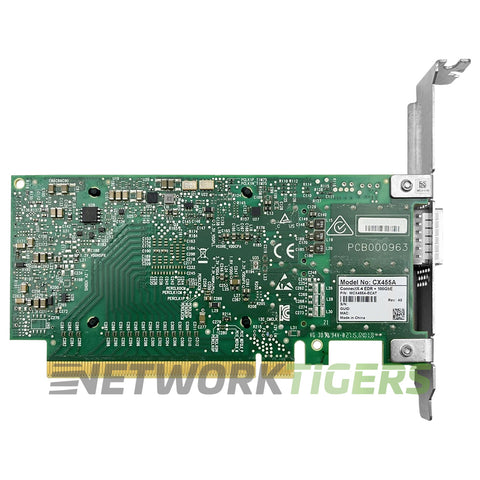

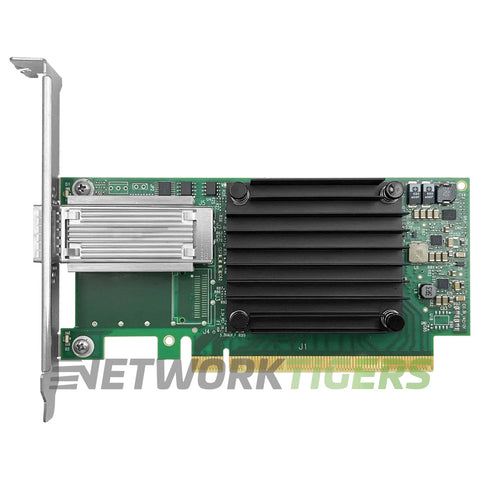

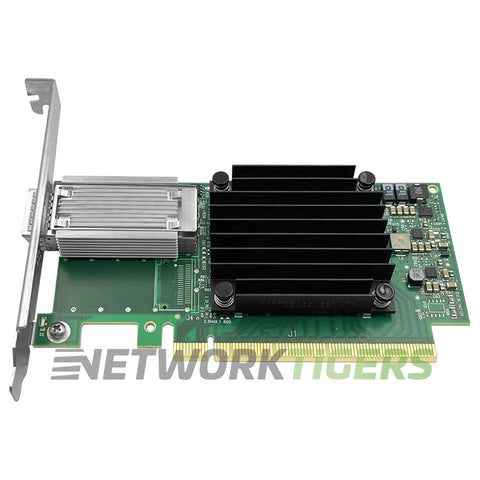

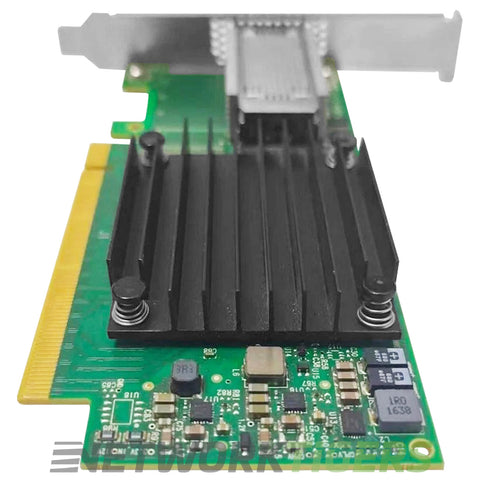

The nVidia Mellanox MCX455A-ECAT is a PCIe Gen 3.0 x16 form factor network interface card manufactured by nVidia. It provides one QSFP28 port supporting transmission speeds of up to 100 Gb/s over Ethernet and InfiniBand protocols, including SDR, DDR, QDR, FDR, and EDR.
This NIC supports high-speed connectivity for systems requiring low latency and large bandwidth throughput across data centers or HPC clusters. The single-port configuration uses a standard QSFP28 connector type compatible with supported transceivers or DAC cables. Designed for full-height mounting in server chassis using the PCI Express bus power specification without external power connectors required.
nVidia Mellanox MCX455A-ECAT: 1x 100GB QSFP28 PCIe Gen 3.0 x16 NIC.
- Module Type : Network Interface Card
- Network Ports : 1x 100 Gigabit QSFP28
- PCIe Interface : PCIe Gen 3.0 x16
- Series : Mellanox ConnectX-4
- Performance : InfiniBand = SDR/DDR/QDR/FDR/EDR, Ethernet = 10/25/40/50/100 Gb/s
- nVidia SKU : 900-9X4AC-0016-ST0
- Model Number : MCX455A-ECAT
- Part Number : MCX455A-ECAT, 900-9X4AC-0016-ST0
- Condition : New

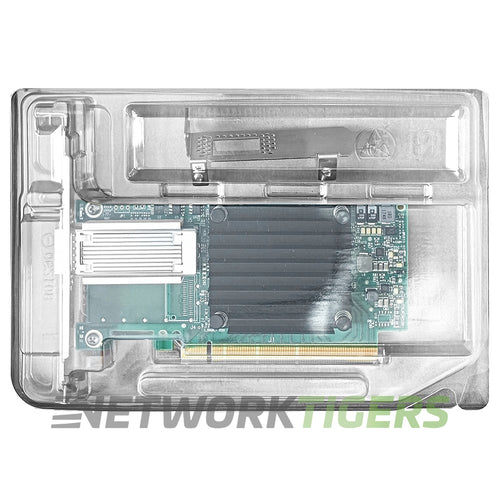

- One (1) NEW nVidia Mellanox MCX455A-ECAT 1x 100GB QSFP28 PCIe Gen 3.0 x16 NIC as described above
