nVidia Mellanox MQM8790-HS2F QM8700 40x 200GB QSFP56 B-F Airflow HDR Switch

nVidia Mellanox MQM8790-HS2F QM8700 40x 200GB QSFP56 B-F Airflow HDR Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-6787

Overview

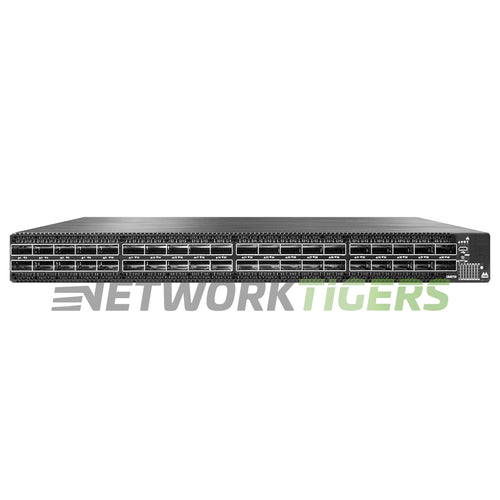

The Mellanox MQM8790-HS2F 40x 200GB QSFP56 Back-to-Front Airflow (P2C) HDR Switch is a high-performance switch designed for data centers. With its switching capacity of up to 16Tb/s (HDR), it can handle large amounts of aggregate data throughput, ensuring fast and efficient handling of network traffic.

One notable feature of this switch is its low latency, with sub-130ns switch latency. This means there will be minimal delay in transmitting and receiving data across the network, resulting in quick response times for critical applications.

The Mellanox MQM8790-HS2F also has a back-to-front airflow design, which ensures proper cooling within the device. Heat dissipation is optimized by channeling air from front to back, and potential overheating issues are minimized.

Mellanox Quantum HDR InfiniBand Switch, 40x QSFP56 ports, 2x Power Supplies (AC), unmanaged, standard depth, P2C airflow, Rail Kit.


Specifications

  • Network Ports : 40x 200 Gigabit Ethernet QSFP56 - 80x HDR100 100Gb/s ports (using splitter cables)
  • Product Family : Mellanox Quantam QM8700 Series
  • Management Ports : 1x Mini USB, 1x RJ45 Console, 1x System Reset Button
  • Switch Version : MLNX-OS
  • System Memory : Single 8GB
  • AirFlow Direction : Back-to-Front Airflow (P2C)
  • Fan Modules : 6x MTEF-FANF-C Hot Swappable Fan - Back-to-Front Airflow (P2C)
  • Power Supplies : 2x MTEF-PSF-AC-C AC Power Supply Included - Back-to-Front Airflow (P2C)
  • Switching Capacity : Aggregate data throughput up to 16Tb/s (HDR)
  • InfiniBand Technology : HDR 200G Infiniband
  • nVidia SKU : 920-9B110-00FH-0D0
  • Depth : Standard
  • Latency : Sub-130ns switch latency
  • CPU : Broadwell ComEx D-1508 2.2GHZ
  • Model Number : MQM8790-HS2F
  • Part Number : MQM8790-HS2F, 920-9B110-00FH-0D0
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MQM8790-HS2F.

Included

  • One (1) Seller refurbished nVidia Mellanox MQM8790-HS2F QM8700 40x 200GB QSFP56 B-F Airflow HDR Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • One (6) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
