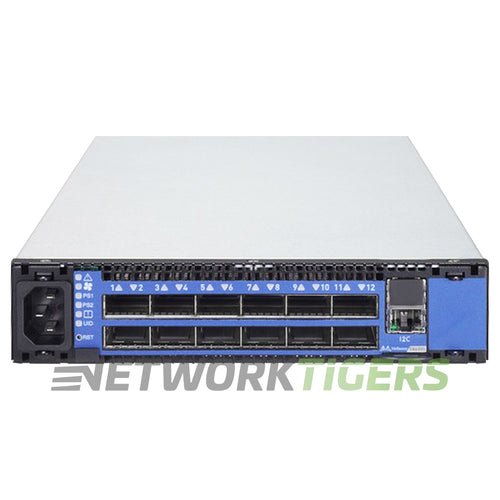

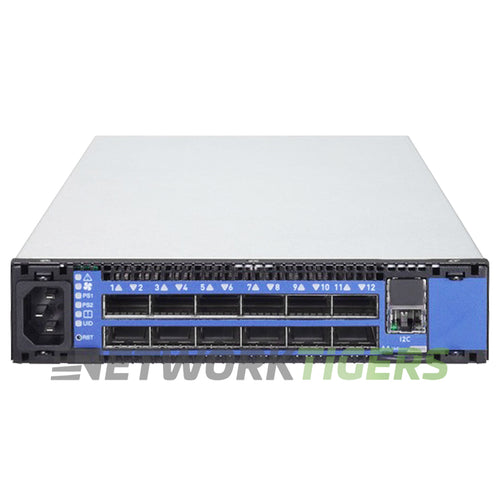

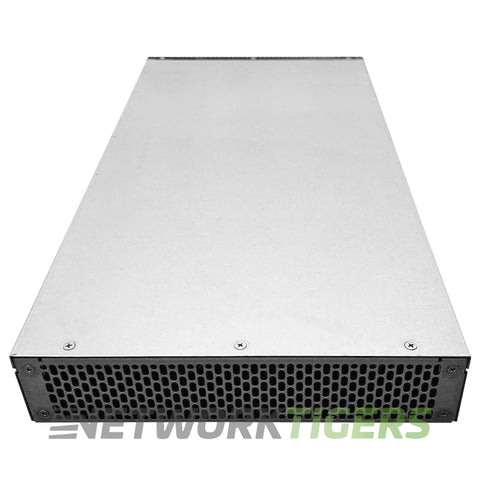

Nvidia Mellanox MSX6005F-1BFS SwitchX 12x 56GB QSFP+ FDR B-F Airflow Switch

Nvidia Mellanox MSX6005F-1BFS SwitchX 12x 56GB QSFP+ FDR B-F Airflow Switch

$ 255.99
$ 245.99
Only 1 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-3584 ASK FOR QUOTE
UPC: 290107194525

Overview

The Nvidia Mellanox MSX6005F-1BFS SwitchX is a high-performance network switch designed for data centers and enterprise environments. With 12 ports supporting QSFP+ FDR technology, this switch offers fast data transfer rates of up to 56GB per second.

Featuring the advanced Airflow design, it ensures efficient cooling while maintaining optimum performance levels. The switching capacity of the MSX6005F-1BFS can reach an impressive 1.344 Tbps (FDR), enabling seamless traffic management in even the most demanding setups.

One notable feature lies in its low port-to-port latency rate at just 200ns, ensuring minimal delays during communication between devices connected to this switch. This makes it ideal for latency-sensitive applications that require near-instantaneous response times.

Mellanox MSX6005F-1BFS: SwitchX-2 based FDR InfiniBand 1U Switch, 12 QSFP+ ports, 1 Power Supply (AC), unmanaged, short depth, Connector airflow out, Rail Kit must be purchased separately, RoHS6


Specifications

  • Network Ports : 12x 56 Gigabit Ethernet QSFP+
  • Management Ports : 1x RJ45 Management
  • Switch Version : FDR InfiniBand Technology

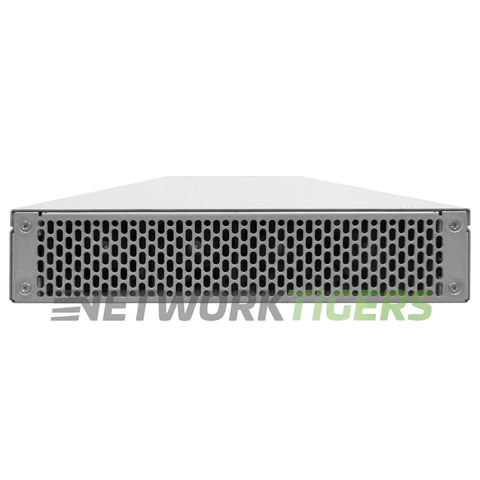

  • AirFlow Direction : Back-to-Front Airflow
  • Power Supplies Included : 1x Internal AC PSU - Back-to-Front Airflow
  • Switching Capacity : up to 1.344 Tbps (FDR)
  • Latency : Port-to-port latency 200ns
  • Model Number : MSX6005F-1BFS
  • Part Number : MSX6005F-1BFS
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSX6005F-1BFS.

Included

  • One (1) Seller refurbished Nvidia Mellanox MSX6005F-1BFS SwitchX 12x 56GB QSFP+ FDR B-F Airflow Switch as described above
  • One (1) Power Cord Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
