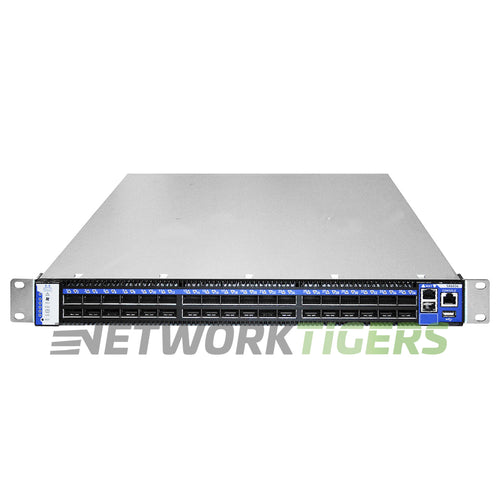

Nvidia Mellanox MSX6036F-1BRS 36x 56GB QSFP+ (FDR) F-B Air (C2P) Switch

Nvidia Mellanox MSX6036F-1BRS 36x 56GB QSFP+ (FDR) F-B Air (C2P) Switch

$ 319.99
Only 2 remaining
In stock means that we have the product available to meet your delivery commitment. If it is on the web site, it is available for sale and we can ship it that day.   Call if you need more
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-0325

Overview

The Nvidia Mellanox MSX6036F-1BRS 36x 56GB QSFP+ (FDR) F-B Air (C2P) Switch is a high-performance switch that offers exceptional switching capacity of 4Tb/s. With a low port-to-port latency of just 200ns, it ensures fast and efficient data transfers.

This switch utilizes the advanced FDR (Fourteen Data Rate) technology to provide blazing-fast network speeds. It features forty QSFP+ ports which can support various interconnect technologies up to QDR/FDR InfiniBand or Ethernet with link speeds ranging from 10Gb/s to as high as ultra-high-speed HDR100 at an unparalleled speed for storage-area networks and computer clusters.

With its air-cooled design, this switch effectively manages heat dissipation while maintaining optimal performance levels in challenging environments.

Mellanox MSX6036F-1BRS: SwitchX-2 based 36-port QSFP FDR 1U Managed InfiniBand switch system with a non‑blocking switching capacity of 4Tb/s. 1PS, short depth, C2P airflow, Rail Kit, RoHS6.


Specifications

  • Network Ports : 36x 56 Gigabit Ethernet QSFP+
  • Management Ports : 2x 1 Gigabit Ethernet RJ45 Management, 1x RS232 over DB9, 1x USB
  • Depth : Short
  • Switch Version : FDR InfiniBand Technology
  • Fan Module Options : 1x Hot Swappable Fan Unit - Front-to-Back Airflow (C2P)
  • Power Supplies Included : 1x 300W AC MSX60-PR Power Supply Included
  • Switching Capacity : 4Tb/s
  • Latency : Port-to-port latency 200ns
  • Model Number : MSX6036F-1BRS
  • Part Number : MSX6036F-1BRS
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSX6036F-1BRS.

Included

  • One (1) Seller refurbished Nvidia Mellanox MSX6036F-1BRS 36x 56GB QSFP+ (FDR) F-B Air (C2P) Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
