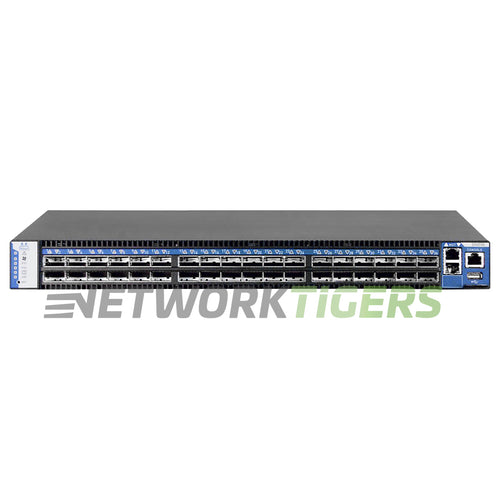

Nvidia Mellanox MSX6036T-1SFR SwitchX 36x 56GB QSFP+ FDR10 B-F Airflow Switch

Nvidia Mellanox MSX6036T-1SFR SwitchX 36x 56GB QSFP+ FDR10 B-F Airflow Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-4615

Overview

The Nvidia Mellanox MSX6036T-1SFR SwitchX is a high-performance switch with 36 ports supporting 56GB QSFP+ FDR10 B-F Airflow. With a switching capacity of up to 2.9 Tbps, this switch offers low port-to-port latency at just 170ns for faster data transfer speeds.

Ideal for demanding networking environments, the SwitchX provides reliable and efficient connectivity for large-scale data centers and HPC clusters. This switch features advanced technology designed to meet the needs of modern networks by providing optimal performance in high-demand situations.

Mellanox MSX6036T-1SFR: SwitchX-based 36-port QSFP 1U Managed IniniBand switch system with a nonblocking switching capacity of 2.9Tb/s. 1PS, Standard depth, Forward airlow*, RoHS-6


Specifications

  • Network Ports : 36x 56 Gigabit Ethernet QSFP+
  • Management Ports : 2x 1 Gigabit RJ45, 1x RS232 port over DB9, 1x USB
  • Firmware Version : FDR10 InfiniBand Technology
  • Fan Modules AirFlow Direction : 1x Hot Swappable Fan Unit Included - Back-to-Front Airflow (Forward)
  • Power Supplies Included : 2x PSU Slots - 1x PSU Included - Back-to-Front Airflow (Forward)
  • Switching Capacity : 2.9 Tbps
  • Latency : Port-to-port latency 170ns
  • Rack Mounts : Included (1-RU)
  • Model Number : MSX6036T-1SFR
  • Part Number : MSX6036T-1SFR
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSX6036T-1SFR.

Included

  • One (1) Seller refurbished Nvidia Mellanox MSX6036T-1SFR SwitchX 36x 56GB QSFP+ FDR10 B-F Airflow Switch as described above
  • One (1) Power Cord Included
  • One (1) AC Power Supply Included
  • One (1) Fan Module Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
