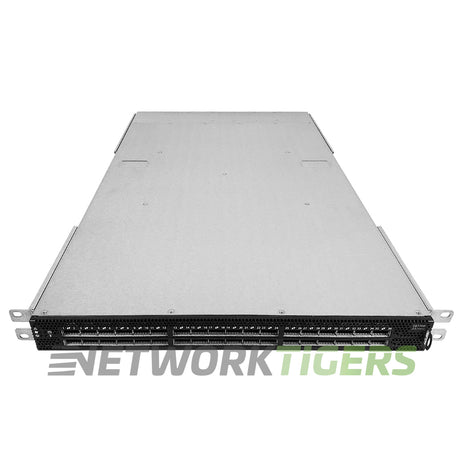

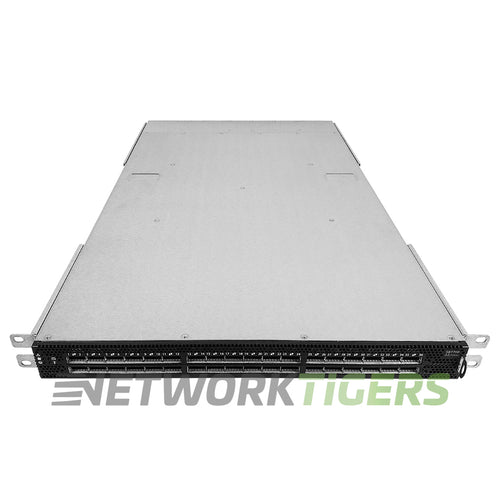

Nvidia Mellanox MSB7700-ES2R SB7700 36x 100GB QSFP28 EDR F-B Air Switch

Nvidia Mellanox MSB7700-ES2R SB7700 36x 100GB QSFP28 EDR F-B Air Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: Seller refurbished
Pre-owned, tested by qualified techs, working, reset-to-factory default, grade A condition, and parts needed for normal functions are included (as described in the listing).
Warranty: 365 days
Warranty coverage period
SKU: NSB-9560

Overview

The Mellanox MSB7700-ES2R SB7700 is an Infiniband switch equipped with 36 ports of QSFP28 supporting speeds up to 100Gb/s per port. It features a dual-core x86 CPU and delivers a switching capacity of 7 terabits per second, providing low latency measured at just 90ns.

Designed for high-speed data transfer applications, this EDR (Enhanced Data Rate) unit supports forward/reverse air cooling options as indicated by the F-B Air designation in its model name. Its design accommodates PoE budget requirements while maintaining efficient power consumption across workloads that demand consistent throughput performance reliability within dense computing setups.

Mellanox MSB7700-ES2R SB7700 Infiniband 36x 100GB QSFP28 EDR F-B Air Switch


Specifications

  • Network Ports : 36x 100 Gigabit Ethernet QSFP28
  • InfiniBand : Extended Data Rate (EDR) InfiniBand - EDR uses efficient 64/66 encoding while increasing the per lane signaling rate to 25Gb/s
  • Management Ports : 2x 1 Gigabit RJ45 Management, 1x RS232 Port, 1x USB
  • Product Family : SB7700 Infiniband
  • nVidia SKU : 920-9B010-00RE-0M0
  • AirFlow Direction : Front-to-Back Airflow (C2P)
  • Fan Modules : 4x MTEF-FANR-A Hot Swappable Fan Unit - Front-to-Back Airflow (C2P)
  • Power Supplies : 2x MTEF-PSR-AC-A AC PSU's - Front-to-Back Airflow (C2P)
  • Switching Capacity : 7 Tbps
  • Latency : 90ns
  • CPU : Dual-core x86 CPU
  • : Included (1-RU)
  • Model Number : MSB7700-ES2R
  • Part Number : MSB7700-ES2R
  • Condition : Seller refurbished

Datasheet

More information on this nVidia MSB7700-ES2R.

Included

  • One (1) Seller refurbished Nvidia Mellanox MSB7700-ES2R SB7700 36x 100GB QSFP28 EDR F-B Air Switch as described above
  • Two (2) Power Cords Included
  • Two (2) AC Power Supplies Included
  • Four (4) Fan Modules Included
  • One (1) Set of Rack Mount Brackets Included

Not Included

  • Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
    Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website
  • Transceiver Modules Not Included
