The NEW Aruba R8P14A CX 10000 switch features 48x 25GB SFP28 and 6x 100GB QSFP28 ports, supporting high-speed data transfers. The Intel Xeon D-1637 processor with six cores at 2.90GHz enhances processing efficiency.
A switching capacity of 3.6 Tbps (bidirectional) ensures reliable network performance with low latency—less than one microsecond without a redirect and less than five microseconds with a redirect. The MAC address table holds up to 98,304 entries for extensive connectivity requirements.
IPv6 multicast support allows routing of up to 8,000 addresses for expanded networking compatibility across various applications.

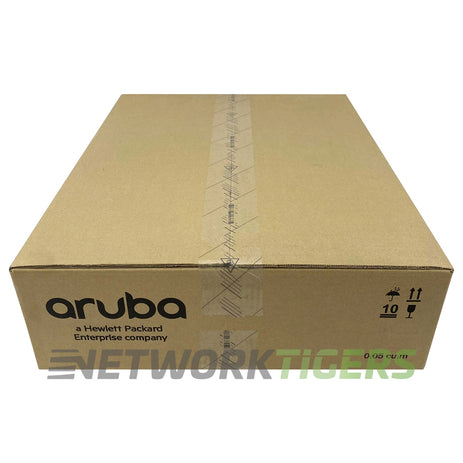

NEW Aruba R8P14A CX 10000 48x 25GB SFP28 6x 100GB QSFP28 B-F Airflow Switch
- Network Ports : 48x 25 Gigabit SFP28
- Uplink Ports : 6x 100 Gigabit QSFP28
- Management Ports : 1x USB micro USB console, 1x RJ-45 Ethernet port
- VLAN : Supports up to 4,018 port-based or IEEE 802.1Q-based user configurable VLANs
- IPv4 Multicast Routes : 8,000
- IPv6 Multicast Routes : 8,000
- CPU : Intel Xeon (R) CPU D-1637 6 cores @ 2.90GHz
- AirFlow Direction : Back-to-Front Airflow
- Fan Module Options : 6x R8R54A Back-to-Front Fans Included
- Power Supplies Included : 2x R8R52A Back-to-Front 800W 100–240VAC PSU
- Packet Buffer : 32MB
- Switching Capacity : 3.6 Tbps (bidirectional)
- MAC Address Table Size : 98,304
- Latency : <1 uSec (without redirect), <5 uSec (with redirect)
- DRAM and Flash : 32GB RAM, 64GB SSD
- Model Number : R8P14A
- Part Number : R8P14A
- Condition : New
- One (1) NEW Aruba R8P14A CX 10000 48x 25GB SFP28 6x 100GB QSFP28 B-F Airflow Switch as described above
