The Dell Z9100-ON EMC Z-Series Switch offers high performance and scalability for data center networks. With a switching capacity of 6.4 Tbps, this switch can handle large amounts of network traffic efficiently.
The switch supports full-duplex forwarding rate of 4400 Mpps (million packets per second), ensuring fast and efficient data transfer across the network.
Featuring a MAC address table size of 136,000 entries and sub-500ns latency, this switch enables seamless communication between devices connected to it.

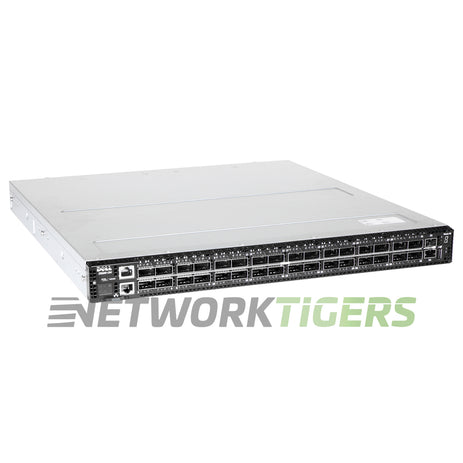

Dell Z9100-ON: 32x 100 Gigabit Ethernet QSFP28 switch with 6.4 Tbps switching capacity. Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal). Does not include OS10.
- Network Ports : 32x 100 Gigabit Ethernet QSFP28
- Uplink Ports : 2x 10 Gigabit Ethernet SFP+
- Management Ports : 1x RJ45 Management with RS232 signalling, 1x USB 2.0 type A Storage
- Switch Version : Does NOT include OS10
- System Memory : CPU memory = 8GB
- AirFlow Direction : Front-to-Back Airflow (I/O Panel to PSU Airflow - Normal)
- Fan Modules : 5x Fan Subsystems Included
- Power Supplies : 2x AC Power Supplies Included
- Switching Capacity : 6.4 Tbps
- Forwarding Rate : 4400 Mpps (Full Duplex)
- MAC Address Table Size : 136,000
- IPv4 Unicast routes : 136K
- IPv6 Unicast routes : 68K
- Multicast Routes : 68K (PIv4)
- VLANs Supported : 4K per port (Layer 2), Standalone 1K/VLT 4K (Layer 3)
- Packet Buffer : 6MB
- Latency : Sub 500ns
- Model Number : Z9100-ON
- Part Number : Z9100-ON
- Condition : Seller refurbished
- One (1) Seller Refurbished Dell Z9100-ON EMC Z-Series 32x 100GB QSFP28 F-B Airflow (No OS10 Licence) Switch as described above
- Two (2) AC Power Supplies Included
- Two (2) Power Cords Included
- Five (5) Fan Modules Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Transceiver Modules Not Included
- Rack Mount Rails Not Included
- OS10 Not installed nor licensed
