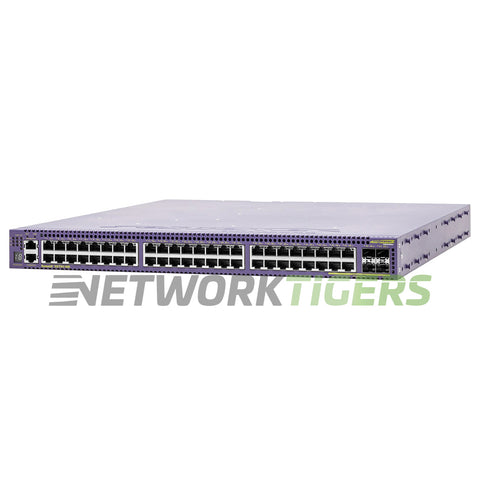

NEW Extreme 17201 X670V-48t-FB-AC 44x 10GB RJ45 4x 40GB QSFP+ F-B Switch
New

NEW Extreme 17201 X670V-48t-FB-AC 44x 10GB RJ45 4x 40GB QSFP+ F-B Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New

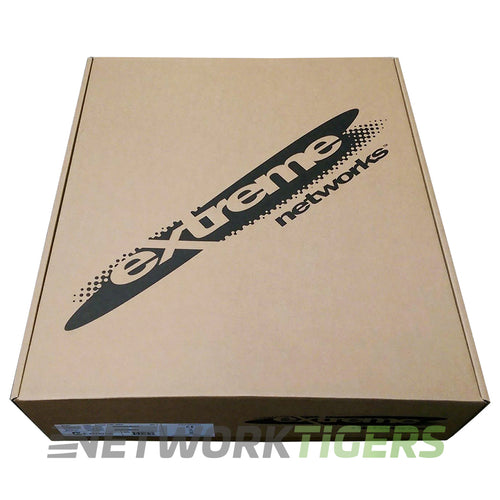

New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-9782
UPC: 644728172016

Overview

The NEW Extreme 17201 X670V-48t-FB-AC Switch offers a high switching capacity of 1280 Gbps and a forwarding rate of 952 Mpps. With its MAC address table size of 128,000 and latency under <3.3 microseconds, this switch provides efficient data transfer for demanding networks.

It features 44x 10GB RJ45 ports and four additional QSFP+ F-B ports for versatile connectivity. The robust design ensures reliable performance in various network setups while supporting up to multiple devices simultaneously without compromising speed or efficiency. The Extreme switch is ideal for businesses looking to enhance their network infrastructure with cost-effective solutions that prioritize performance and reliability above all else.

NEW Extreme 17201 X670V-48t-FB-AC 44x 10GB RJ45 4x 40GB QSFP+ F-B Switch


Specifications

  • Network Ports : 4x 10 Gigabit Ethernet RJ45, 4x 10 Gigabit Combo Ports (RJ-45/SFP+)
  • Uplink Ports : 4x 40 Gigabit Ethernet QSFP+
  • Management Ports : 1x 1 Gigabit Ethernet RJ45 Out-of-band management port, 1x RJ45 RS-232c Serial port (control port)
  • Stacking Ports : SummitStack-V capability utilizes 10 GbE ports as stacking ports, enabling the use of standard cabling and optics technologies used for 10GbE BASE-T RJ45 and BASE-X SFP+ available on the X670V-48t.
  • Stacking Options : SummitStack-V provides long-distance stacking connectivity of up to 40 km while reducing the cable complexity of
  • Module Slots : 1x Module Slot - Modules not included
  • Module Options : 17122 - VIM4-40G4X (4 40GBASE-X QSFP+ ports module for Summit X670V)
  • AirFlow Direction : Front-to-Back Airflow
  • Fan Module Options : 3x Fan Modules
  • Power Supplies Included : 2x 10925 Summit 550W AC PSU
  • Power Supply Options : 10926 (DC F-B), 10927 (AC B-F), 10928 (DC B-F)
  • Switching Capacity : 1280 Gbps
  • Forwarding Rate : 952 Mpps
  • MAC Address Table Size : 128,000
  • Latency : < 3.3 micro second
  • Model Number : 17201
  • Part Number : 17201, X670V-48t-FB-AC
  • Condition : New


Included

  • One (1) New Extreme 17201 Summit X670v Series X670V-48t-FB-AC 44x 10 Gigabit Copper 4x 40 QSFP+ Front-to-Back Airflow Switch as described above
