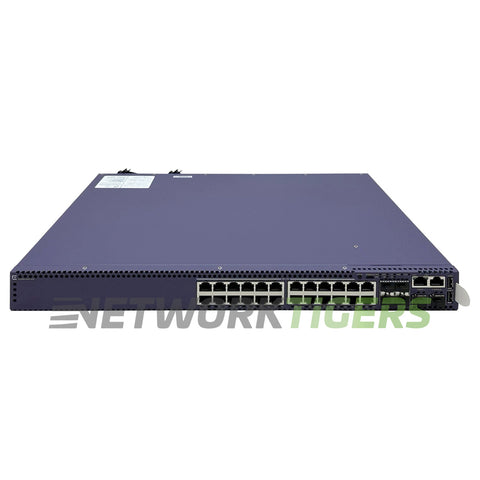

NEW Extreme 5420M-24W-4YE 5420 Series 24x 1GB PoE RJ45 4x 25GB SFP28 Switch
New

NEW Extreme 5420M-24W-4YE 5420 Series 24x 1GB PoE RJ45 4x 25GB SFP28 Switch

Ask for quote
Shipping: OVERNIGHT OPTION
Cutoff Ground / 3 day / 2 day - 2pm PT, Cutoff Overnight - 5pm PT. Overnight orders after 4pm PT require approval. Call 800-430-6950 to confirm overnight orders after 4pm PT.
Condition: New
New in Original Manufacturers Box. Sold with warranty from NetworkTigers or the manufacturer.
Warranty: 365 days
Warranty coverage period
SKU: NSN-8583

Overview

The NEW Extreme 5420M-24W-4YE switch from the 5420 Series offers reliable performance with its 24x 1GB PoE RJ45 ports and 4x 25GB SFP28 ports. With a PoE budget of up to 720W (with one PSU) or 1440W (with two PSUs), it can power multiple devices simultaneously.

The switching capacity of 328 Gbps ensures fast data transfer, while the forwarding rateof244 mpps keeps network traffic flowing smoothly. This switch has a MAC Address Table Size of 32,000(64,000 non-Fabric), allowing for efficient address lookup within the network. Whether you are setting up a new office network or expanding an existing one, this high-performance switch provides robust connectivity solutions for your business needs.

Extreme 5420M-24W-4YE: 5420 Universal Switch with 24 x 10/100/1000BASE-T 802.3bt 90W PoE full/half duplex ports, includes 4 x 1/10/25Gb SFP28 uplink ports, 2 x Stacking/SFP-DD ports, two unpopulated PSU slots, modular fan module, Base software license.


Specifications

  • Network Ports : 24x 1 Gigabit Ethernet PoE RJ45
  • Uplink Ports : 4x 25 Gigabit Ethernet SFP28
  • Management Ports : 1x Serial Console RJ45, 1x 1 Gigabit Out-of-Band Management, 2x USB A, 1x USB Micro-B Console
  • Stacking Ports : 2x Stacking/SFP-DD ports*
  • Fan Modules AirFlow Direction : 1x Fan Module Included (XN-FAN-000)
  • Power Supplies Included : 2x Unpopulated PSU Slots - Options XN-ACPWR-920W
  • PoE Budget : 720W (1x 920W PSU), 1440W (2x 920W PSU)
  • Switching Capacity : 328 Gbps
  • Forwarding Rate : 244.0 mpps
  • MAC Address Table Size : 32,000 (64,000 non-Fabric)
  • Rack Mounts : Included (1-RU)
  • Model Number : 5420M-24W-4YE
  • Part Number : 5420M-24W-4YE
  • Condition : New


Included

  • One (1) New Extreme 5420M-24W-4YE 5420 Series 24x 1 Gigabit PoE RJ45 4x 25 SFP28 Switch as described above
