The Cisco AIR-AP3802I-B-K9 is a dual-band 802.11ac Wave 2 access point with MU-MIMO and flexible radio support. It operates on 2.4 and 5 GHz frequencies, offering data rates up to 5.2 Gbps for high-speed connectivity across multiple devices.
Its internal omnidirectional antennas provide a gain of 4 dBi at 2.4 GHz and directional coverage with a gain of 6 dBi at 5 GHz, featuring an elevation plane beamwidth of 90°. A dedicated internal omnidirectional antenna supports an additional independent five-gigahertz channel with five decibels-isotropic (dBi) gain.
Supporting IEEE standards including Wi-Fi protocols such as IEEE 802.11b/g/n/a/ac ensures compatibility across wireless networks deployed in varied configurations where regulatory compliance aligns within United States domain (-B).
Cisco AIR-AP3802I-B-K9 Dual-Band 802.11ac Wave 2 4x4 MU-MIMO Cont Based WAP
- Wi-Fi Standard : Wi-Fi 5 (802.11ac)
- Suggested Use : High-Density Enterprise Networks Designed for Mission-Critical, High-Performance Applications
- Region : B Regulatory Domain (US)
- Radios : 1x 2.4 GHz Radio (4x4 MIMO, 3 Spatial Streams), 1x 5 GHz Radio (4x4 MU-MIMO, 3 Spatial Streams), Flexible Radio Assignment Allowing Dual 5 GHz Mode for 5.2 Gbps Combined Throughput
- Spatial Streams per Radio : 4x4 MU-MIMO with Three Spatial Streams
- Maximum Data Rate : Up to 5.2 Gbps (2 x 2.6 Gbps) in Dual 5 GHz Mode
- PoE Standard : 802.3at PoE+ (UPoE) - AIR-PWRINJ6 Injector not included
- DC Power Input : AIR-PWR-50 Power Supply not included

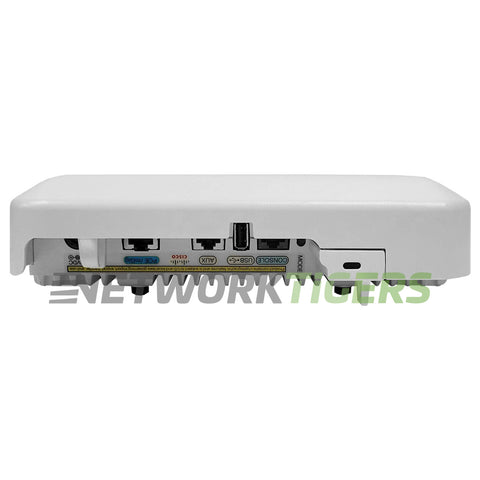

- Uplink Ports : 1x 100/1000/2500/5000 Multigigabit Ethernet RJ45
- Other Ports : 1x 1 Gigabit RJ45 AUX, 1x Management Console RJ45
- Antenna Type : Internal Omnidirectional - Flexible radio - 2.4 GHz, gain 4 dBi, internal, omnidirectional in azimuth, 5 GHz, gain 6 dBi, internal directional, elevation plane beamwidth 90° | Dedicated 5-GHz radio - 5 GHz, gain 5 dBi, Internal, omnidirectional in azimuth
- MIMO Technology : 4x4 MU-MIMO with three spatial streams
- Mounts Included : Included
- Model Number : AIR-AP3802I-B-K9
- Part Number : AIR-AP3802I-B-K9, AIR-AP3802I-B-K9=, AIR-AP3802I-B-K9-WS
- Condition : Seller refurbished
- One (1) Seller Refurbished Cisco AIR-AP3802I-B-K9 Dual-Band 802.11ac Wave 2 4x4 MU-MIMO Cont Based WAP as described above
- One (1) Wall Mount Bracket Included
- Manuals or product brochures are not included. Software or Firmware DVDs or CDs are not included
Product information and installation instructions may be found on the manufacturer's website or the web. Software or firmware updates may be available through the manufacturer's website - Power Injector Not Included
- Power Adapter Not Included
